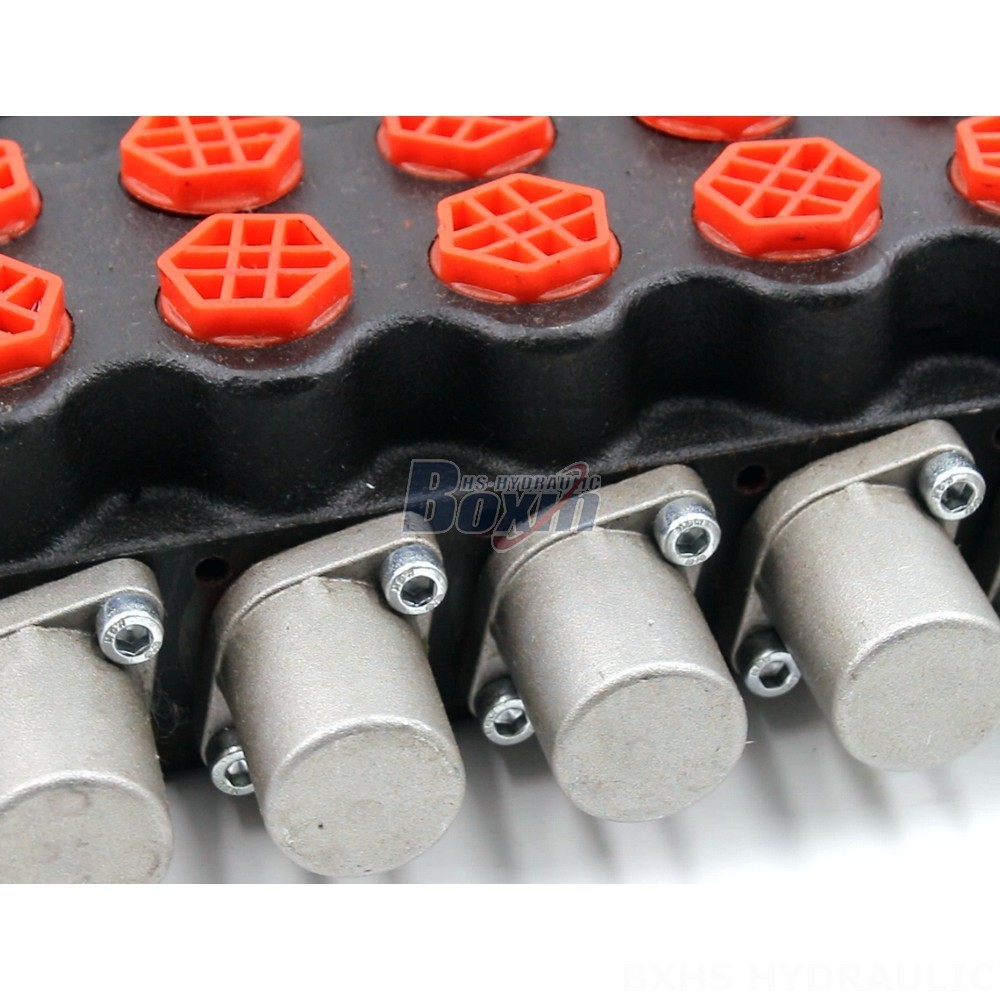

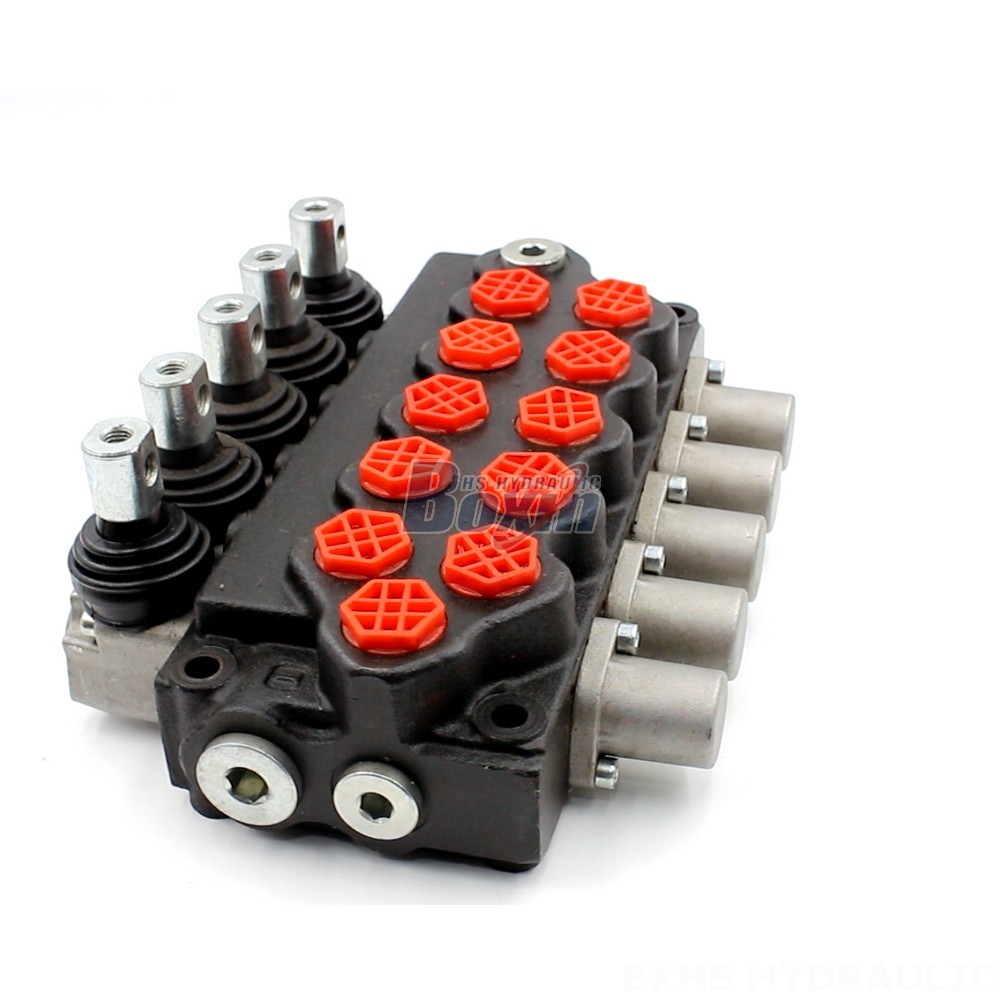

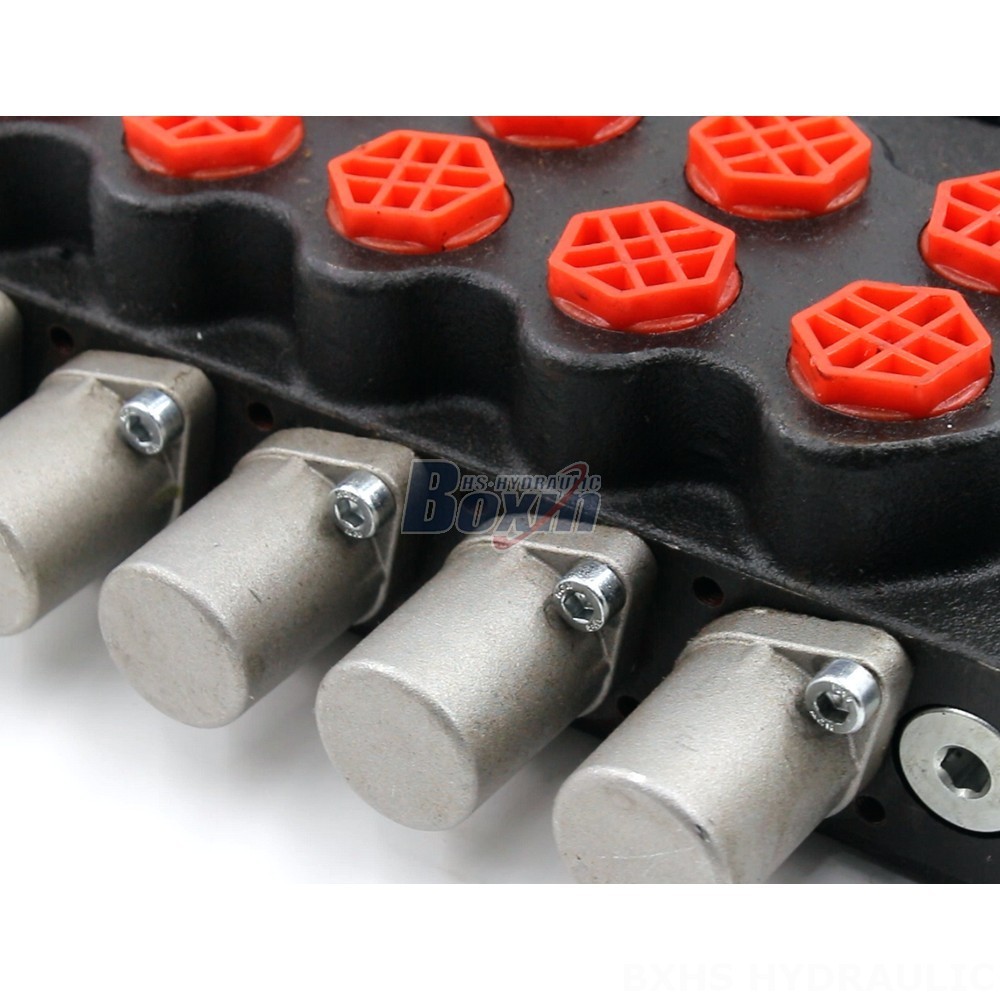

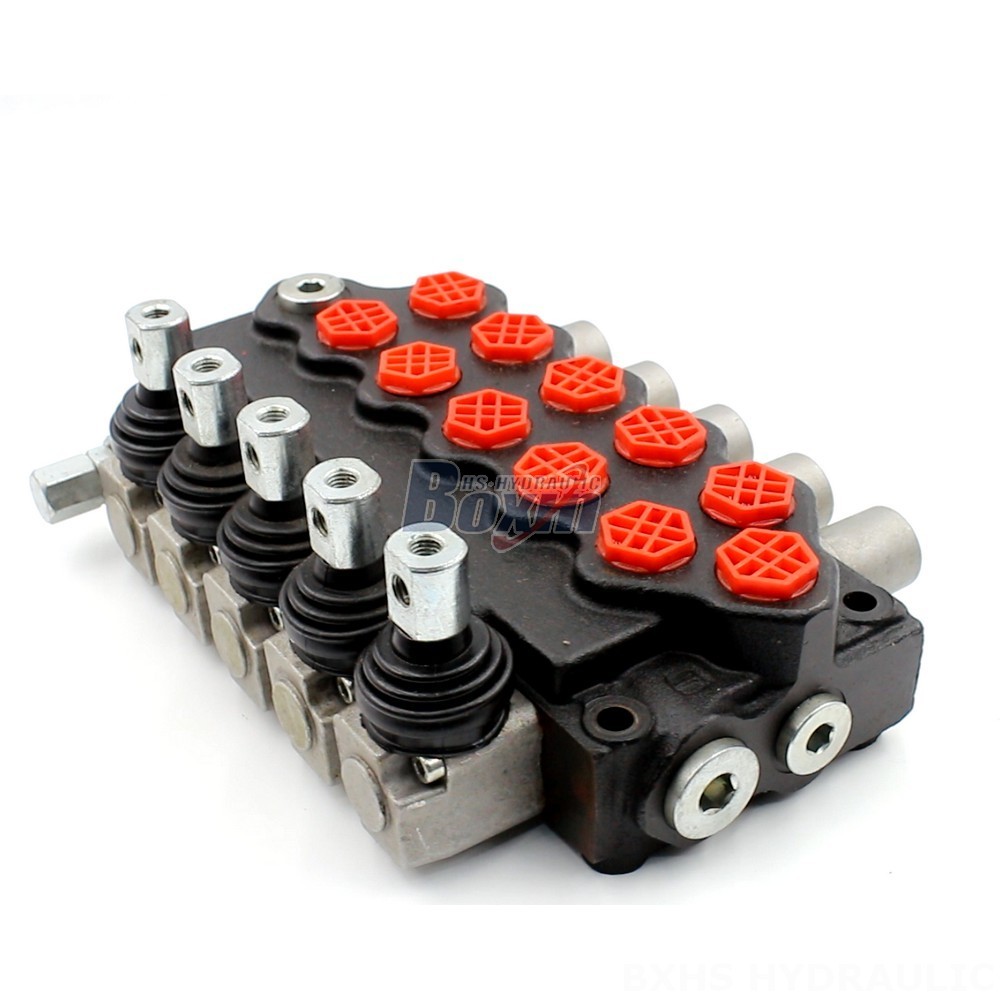

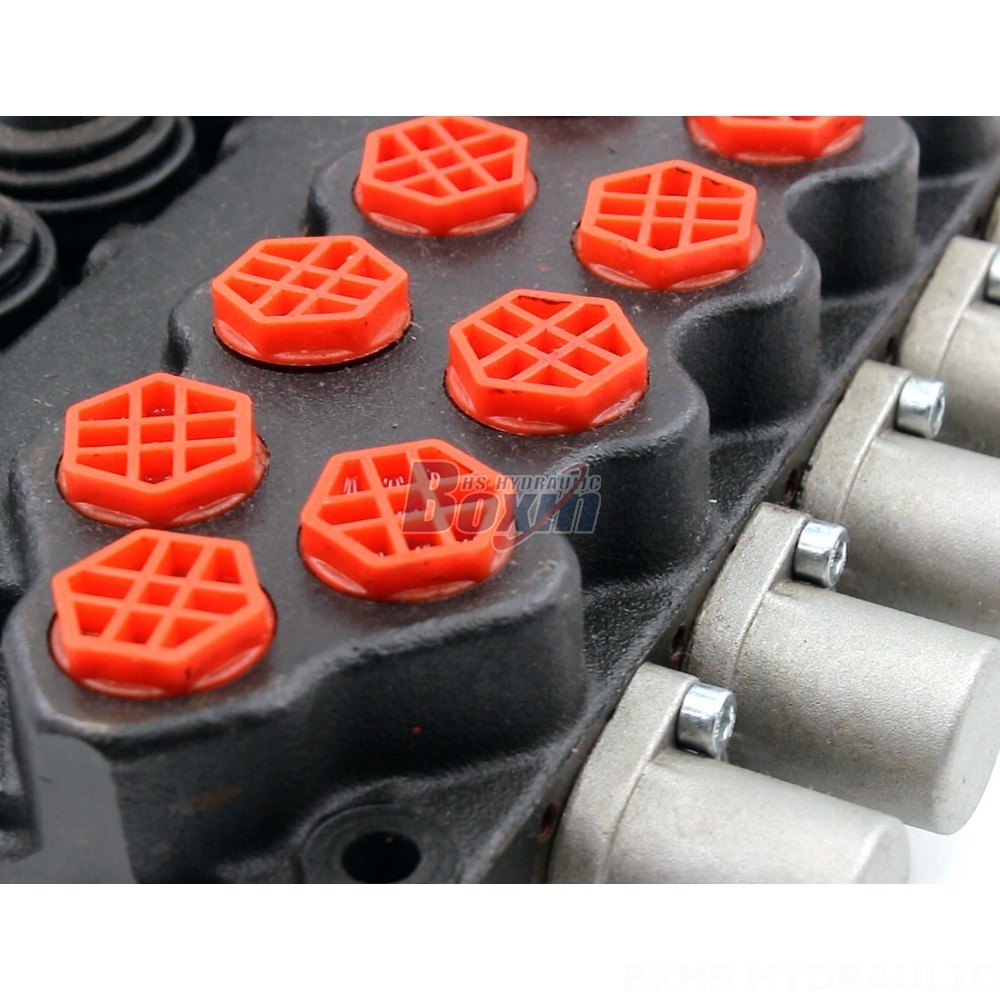

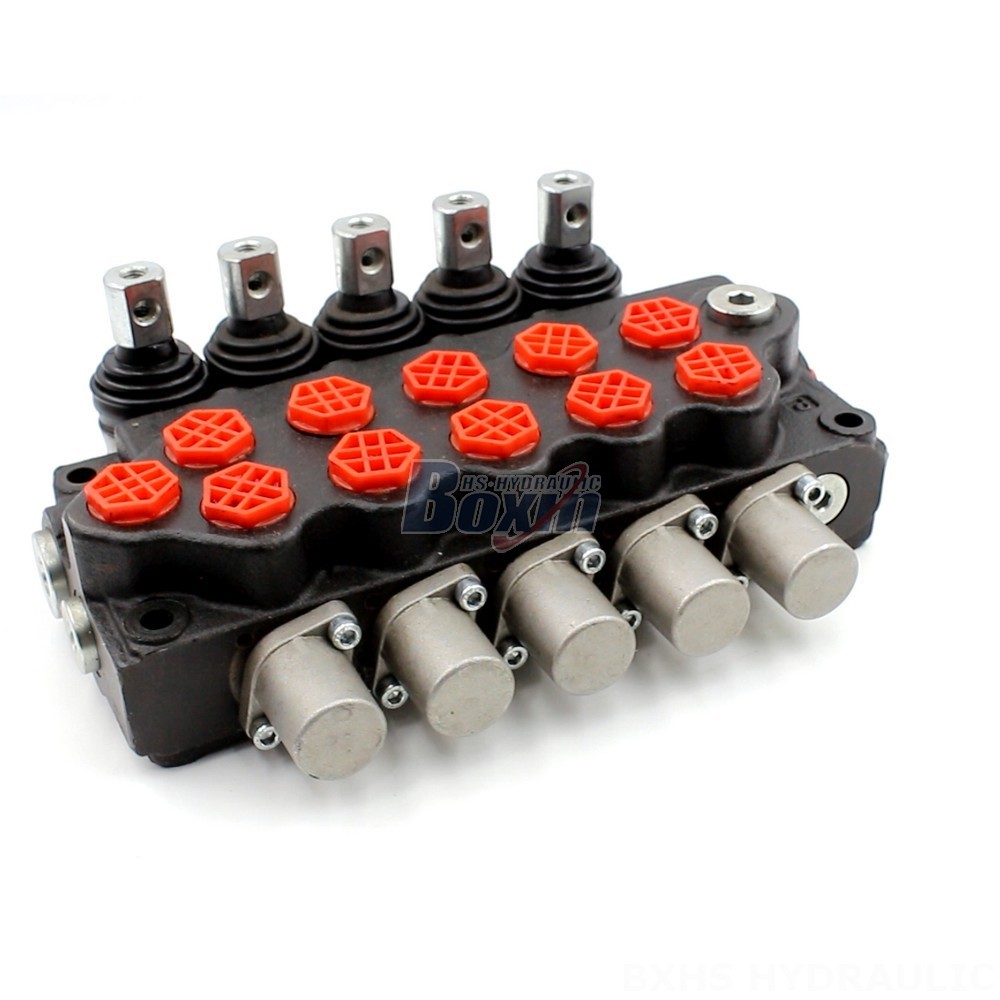

The SD5-G38 5-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a variety of applications. It features a manual control, 5 sections, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a max pressure of 305 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +60°C. The valve is available with 5 spools and is part of the SD5 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications.
| Серия SD5 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 305 бар (4400 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Выходной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Размер порта | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 5-Spool Hydraulic Directional Valve is a versatile and reliable valve that is ideal for a variety of applications. Its manual control provides precise and responsive operation, while its 5 sections allow for complex control of hydraulic systems. The monoblock valve structure ensures durability and longevity, while the rated flow of 40 L/min and max pressure of 305 bar make it suitable for even the most demanding applications. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +60°C make it suitable for use in a wide range of environments. The valve is available with 5 spools and is part of the SD5 Series, which is known for its high quality and performance. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and harvesters.
