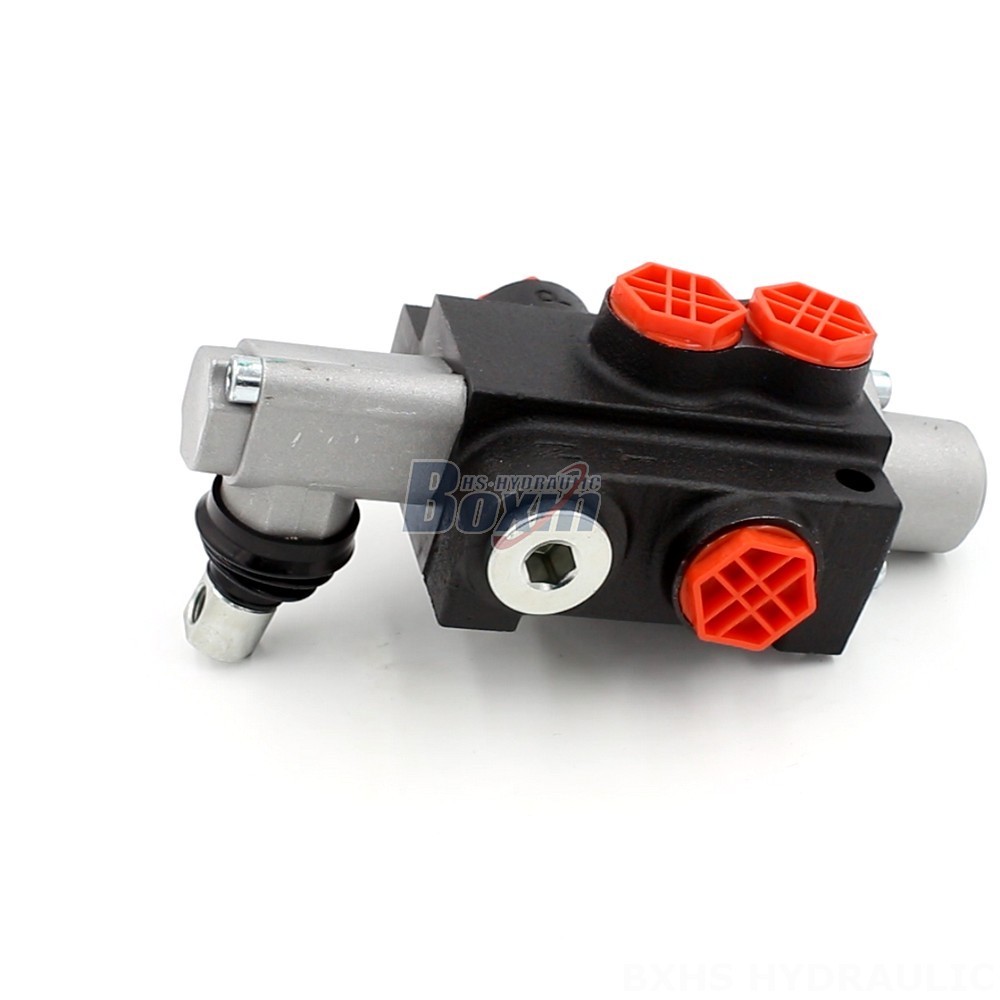

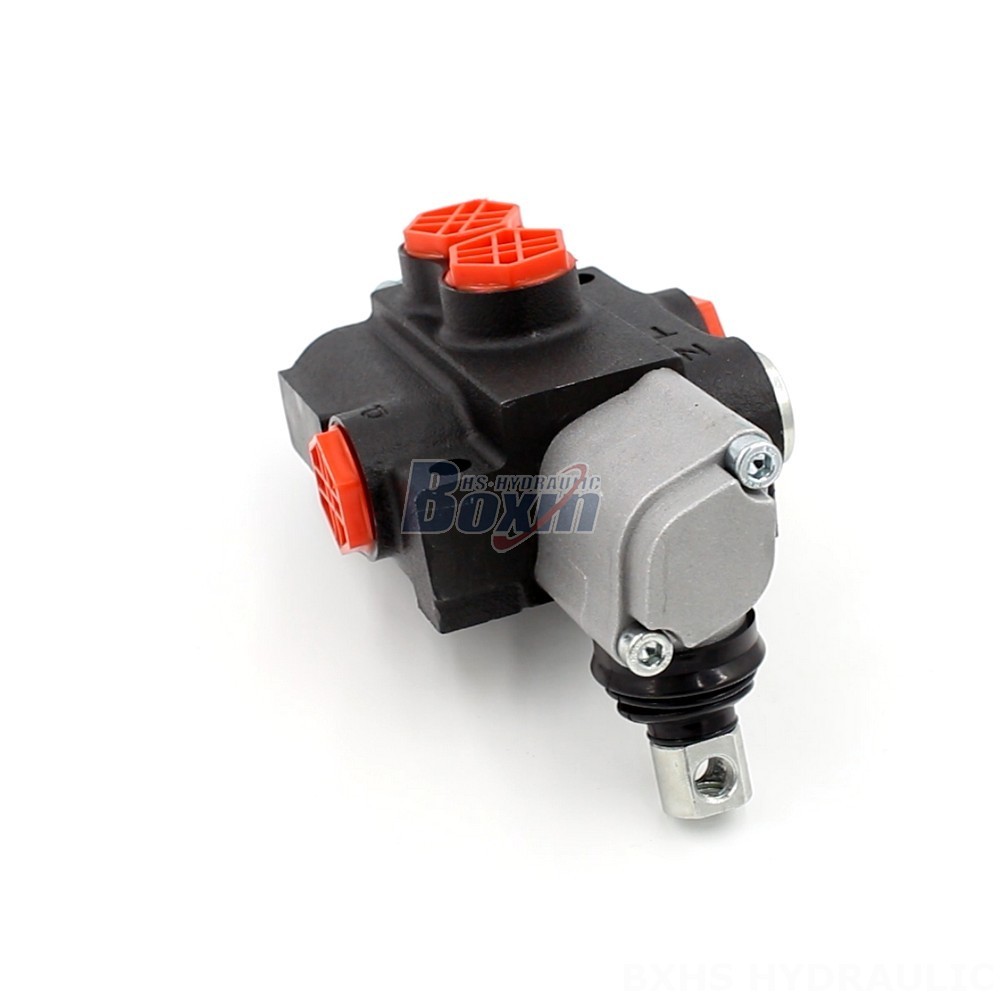

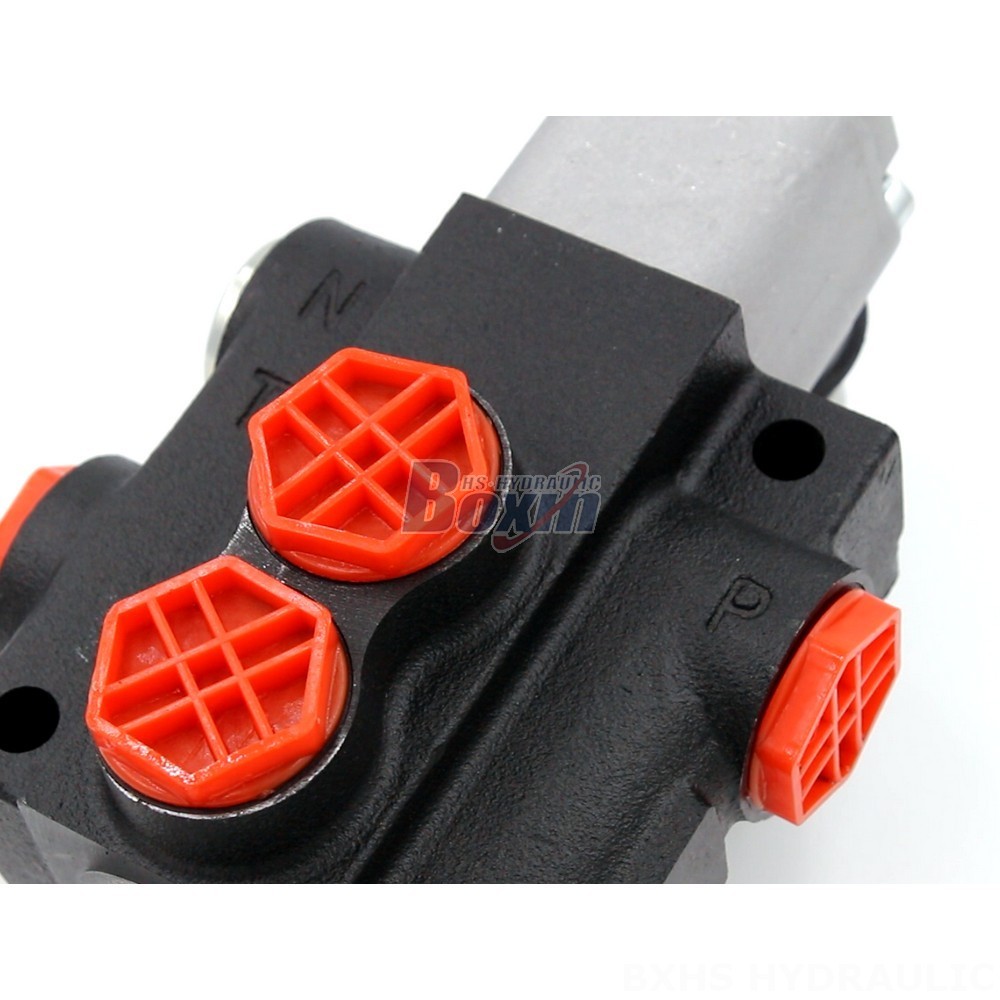

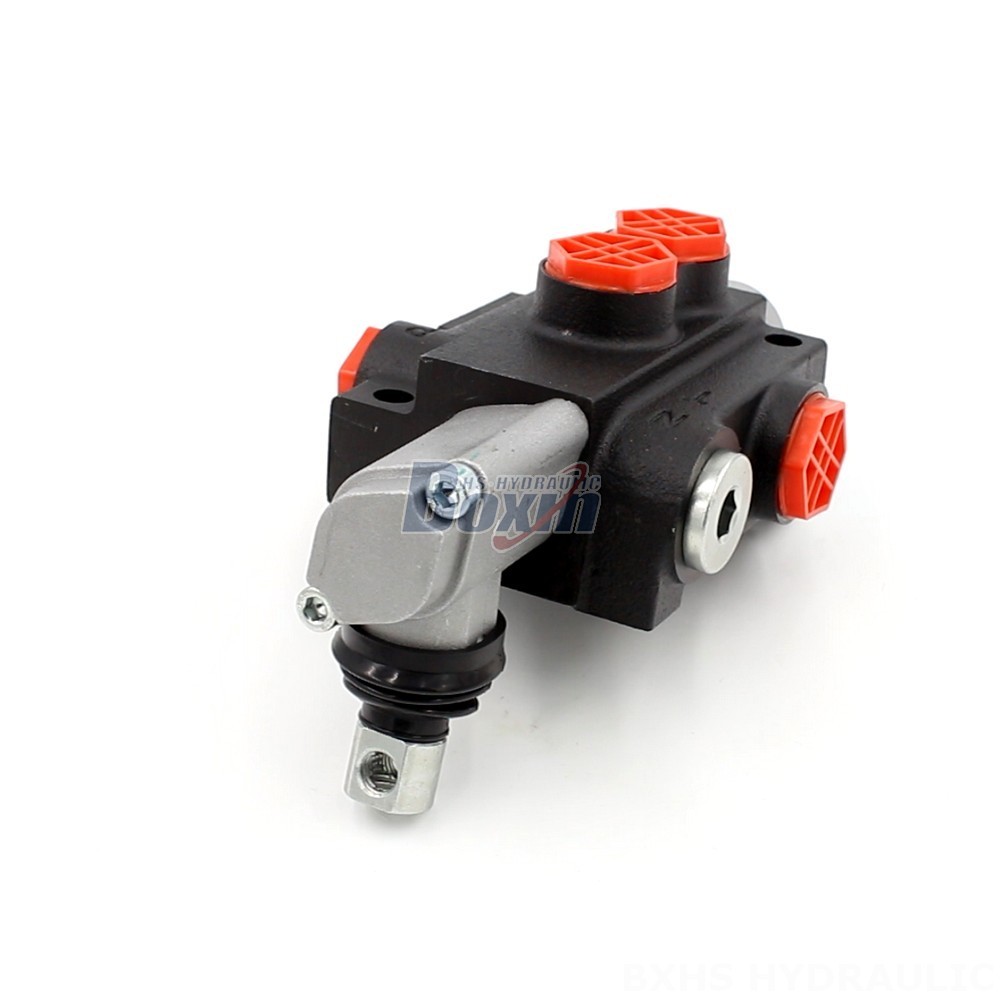

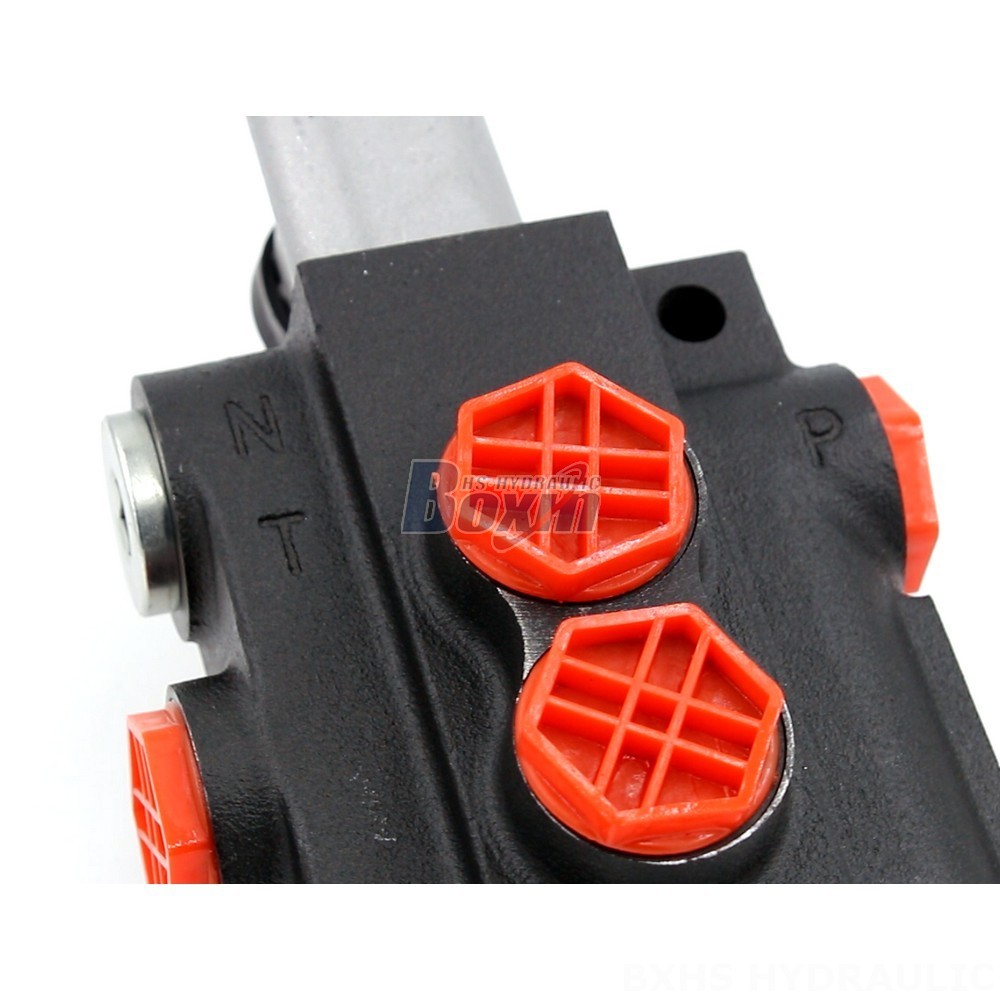

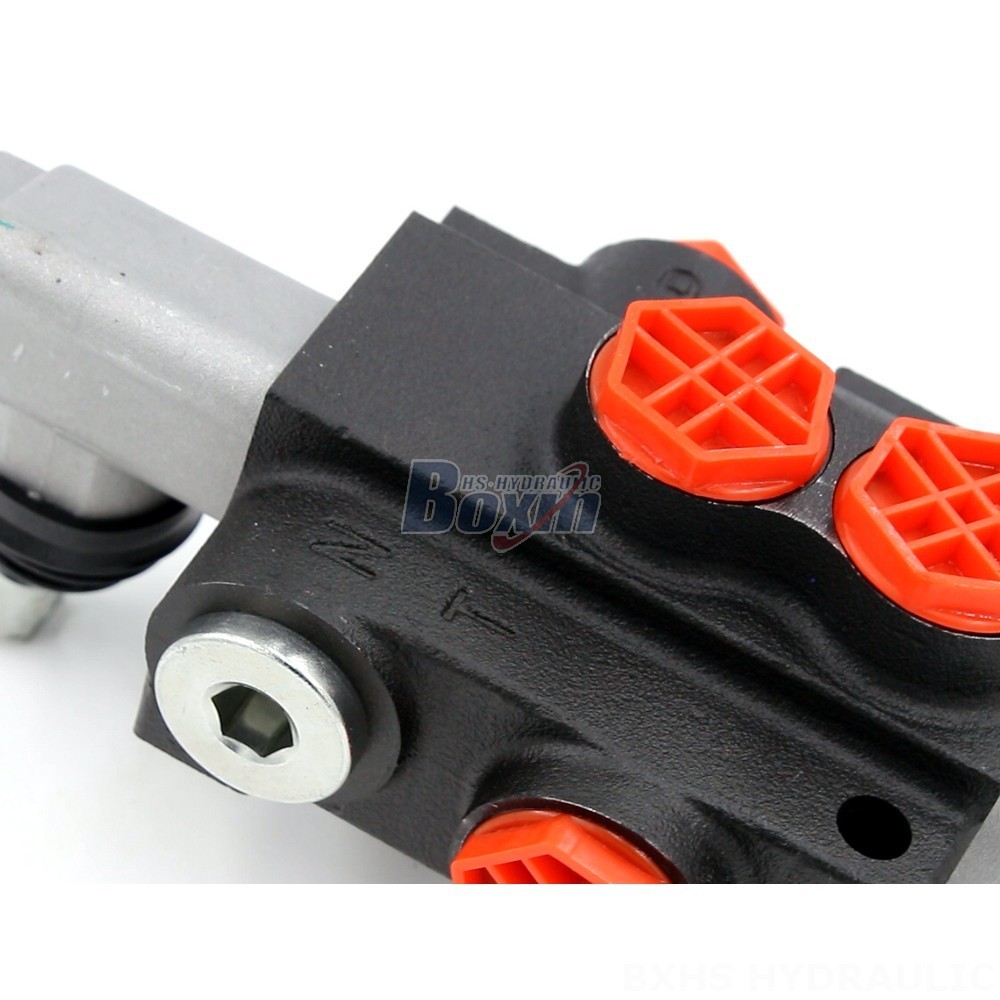

The P40-G12-OT Tipper Control Valve is a high-performance hydraulic directional valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. It features a manual control method, 1 section, monoblock valve structure, 40 L/min rated flow, and 250 bar maximum pressure. This valve is available factory direct and customizable to meet your specific needs.
| Серия P40 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Соленоидный и джойстиковый, Ручной и джойстиковый, Соленоидный и тросовый |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 250 бар (3600 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Выходной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Размер порта | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-OT Tipper Control Valve is a reliable and durable hydraulic valve designed for heavy-duty applications. It offers a compact and robust design with a 1-section monoblock valve structure. This valve is manually controlled, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers powerful hydraulic performance. It's suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The P40-G12-OT Tipper Control Valve is manufactured with high-quality materials and rigorous testing to ensure long-lasting performance and reliability. It's available factory direct, offering flexibility for customization to meet your specific requirements. This valve is ideal for demanding applications where robust performance and reliability are essential.
