Производство и доставка
Срок изготовления 15-30 дней

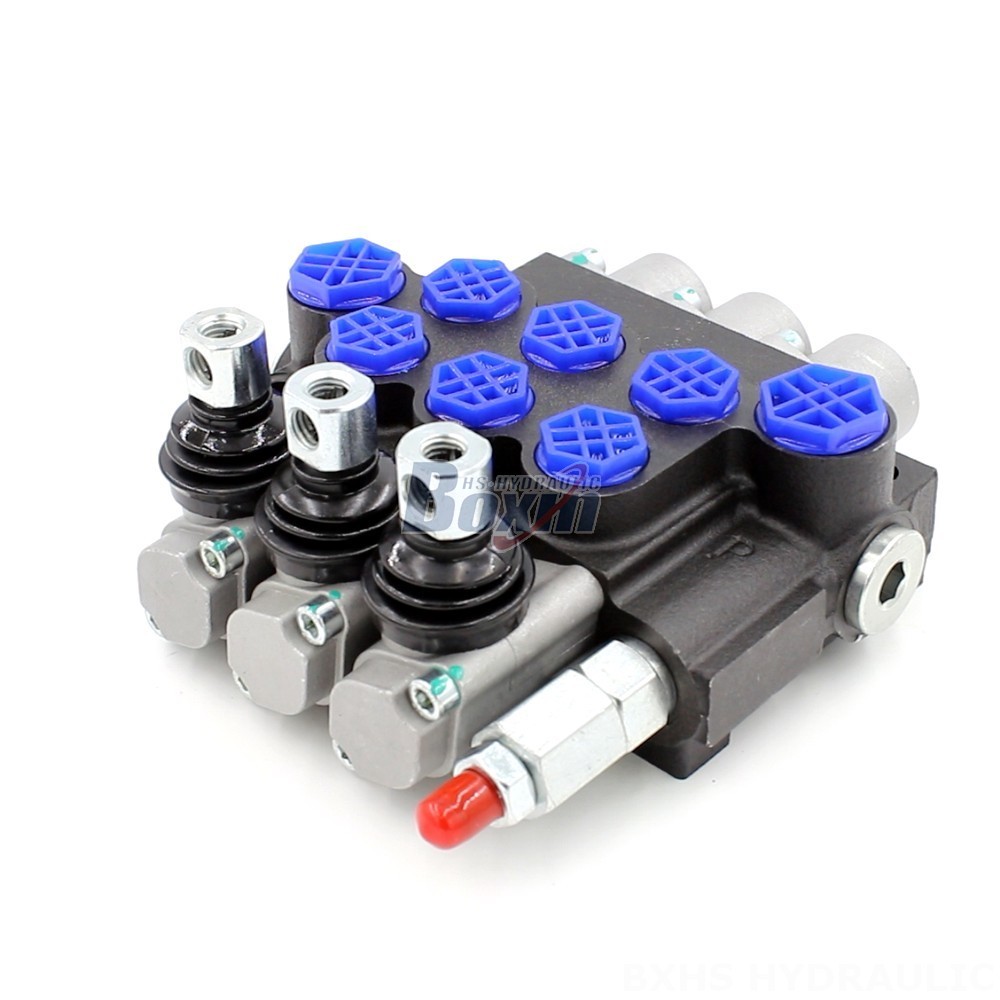

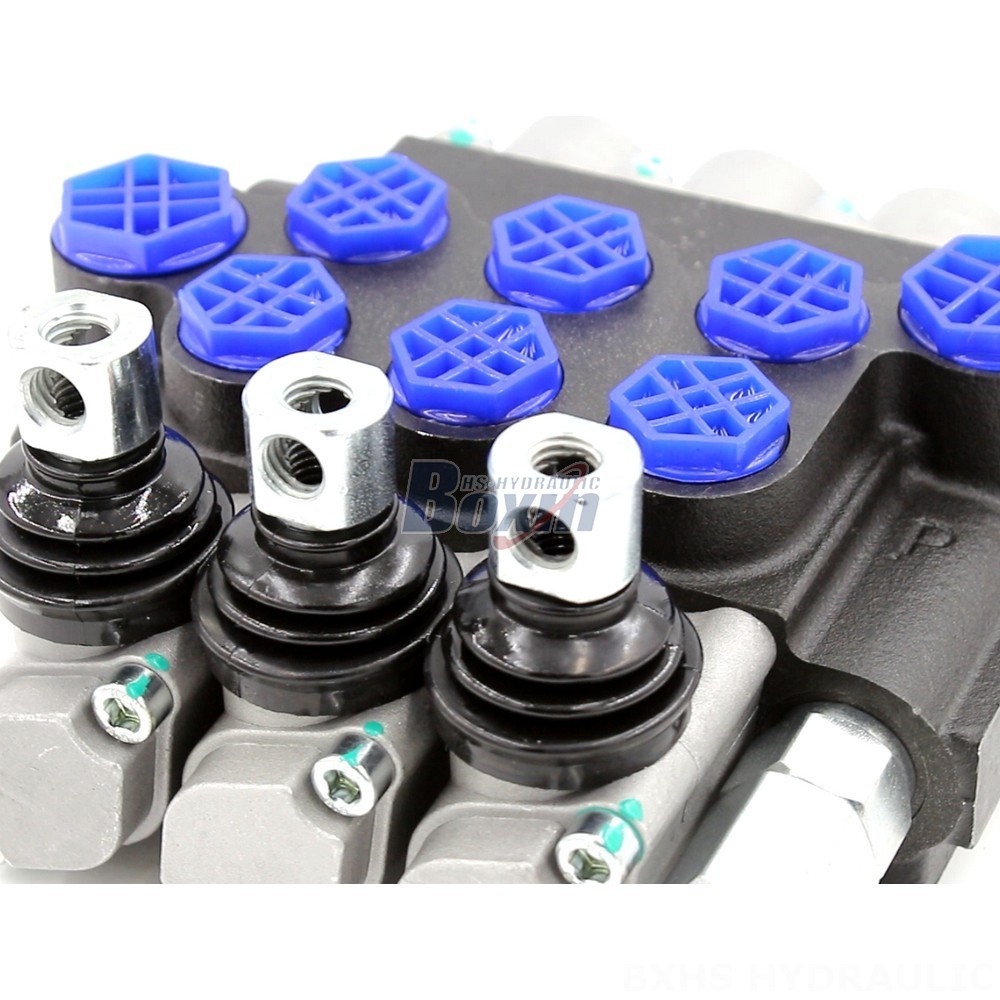

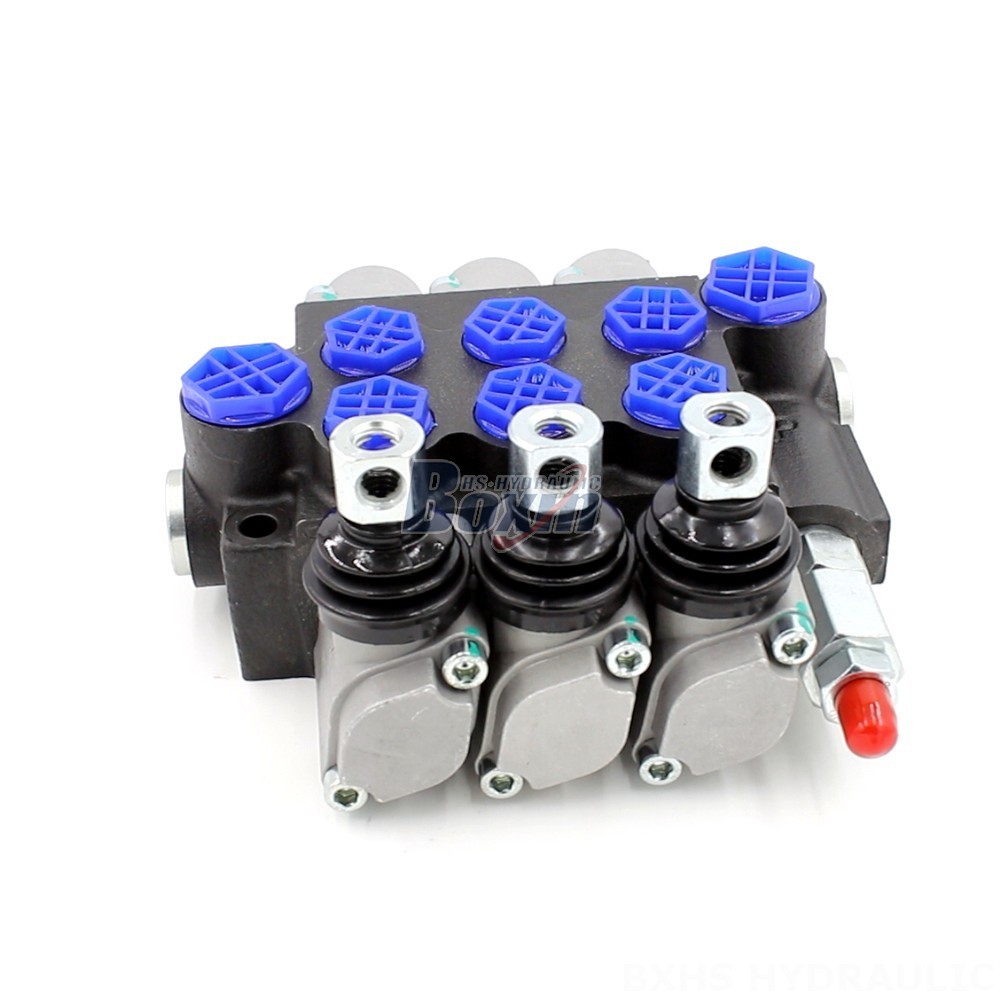

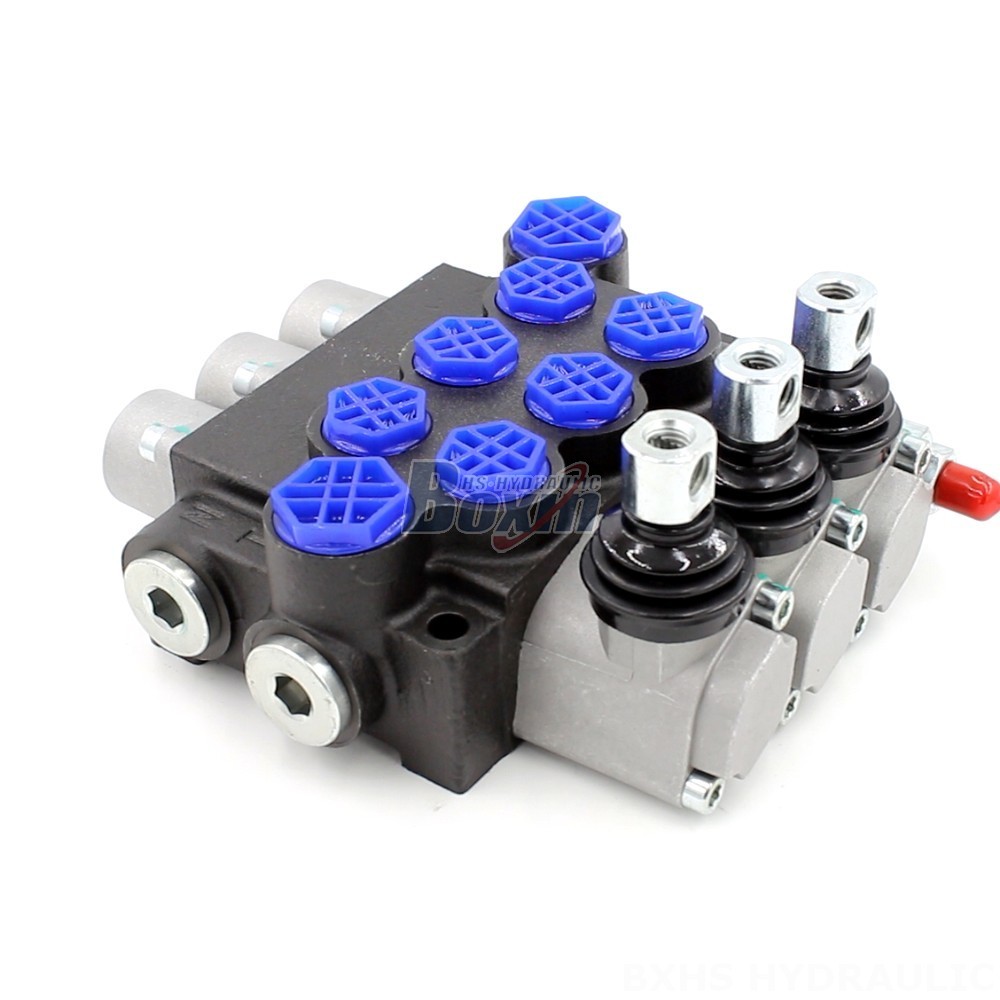

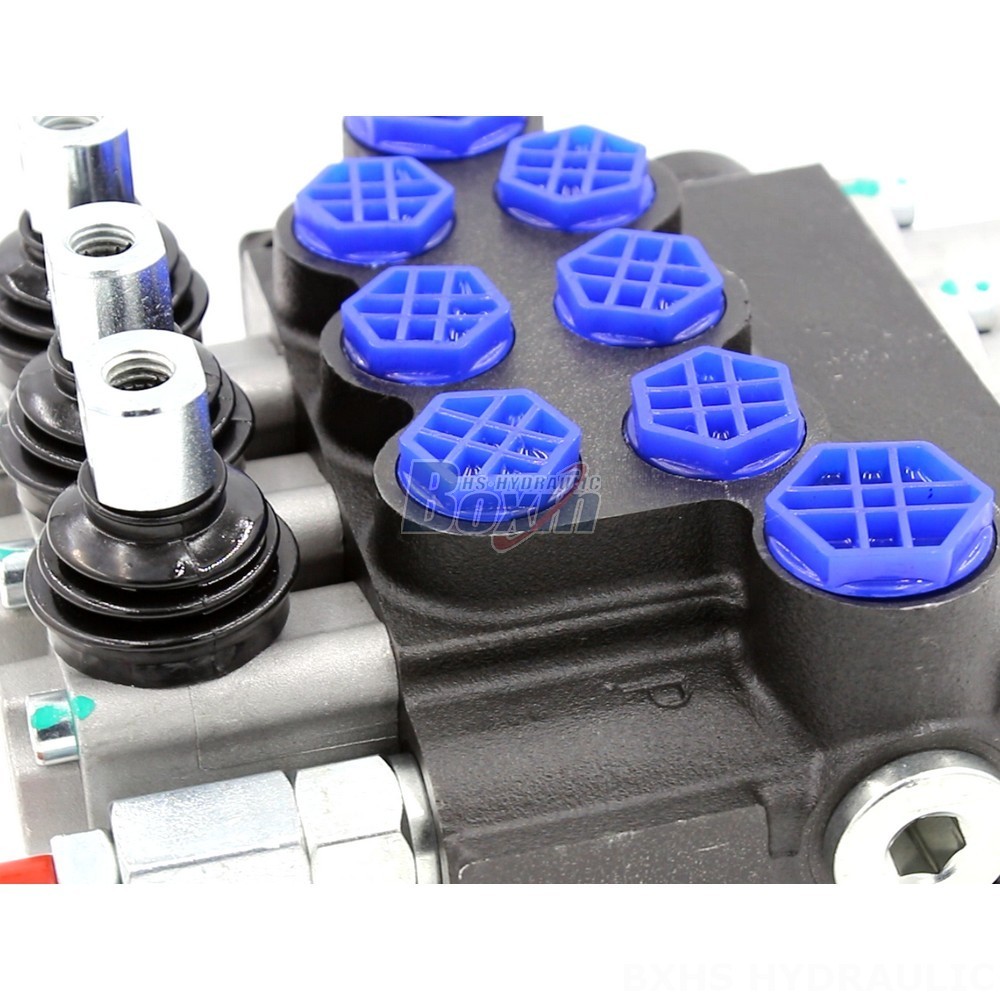

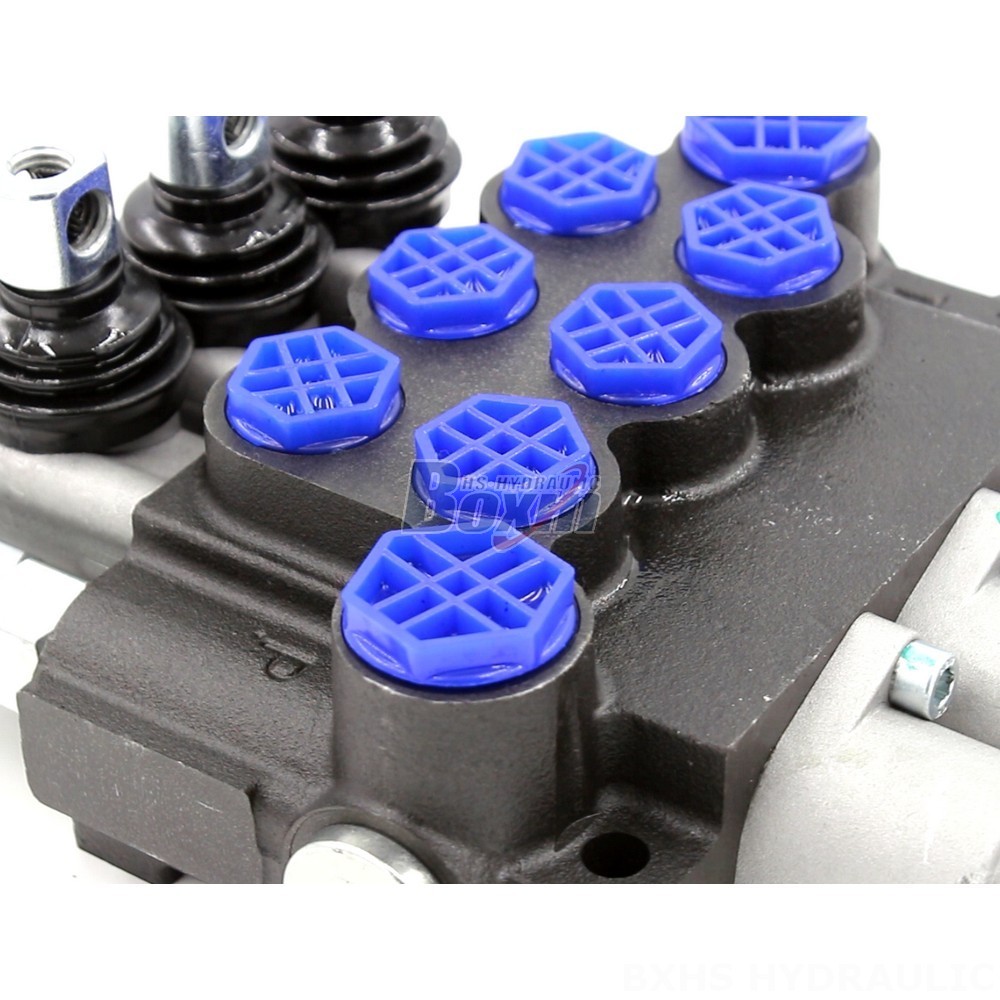

The P40-G12-G38-OT Hydraulic Directional Valve is a high-performance directional control valve designed for use in a wide range of hydraulic applications. With a rated flow rate of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Серия P40 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Соленоидный и джойстиковый, Ручной и джойстиковый, Соленоидный и тросовый |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 250 бар (3600 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Выходной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Размер порта | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT Hydraulic Directional Valve features a robust monoblock construction for enhanced durability. Its manual control mechanism provides precise and responsive operation, while its three-section design allows for independent control of multiple hydraulic circuits. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of operating conditions. This valve is part of the P40 Series, known for its high quality and reliability. It is suitable for use in various applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
