P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

Метод управления:Ручное

Катушка:4 золотника

Номинальный расход:40 л/мин (10,5 галлон США/мин)

Максимальное давление:250 бар (3600 фунт на кв. дюйм)

Входной порт:G1/2

Выходной порт:G1/2

Размер порта:G3/8

Поставщик:BXHS

Тип продукта:Моноблочный направляющий клапан

Серия продуктов:Серия P40 Моноблочный направляющий клапан

Размер упаковки:24*23*13

Вес брутто:8.20 kg

Наличие: В наличии

1441 Просмотры ищут этот продукт

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

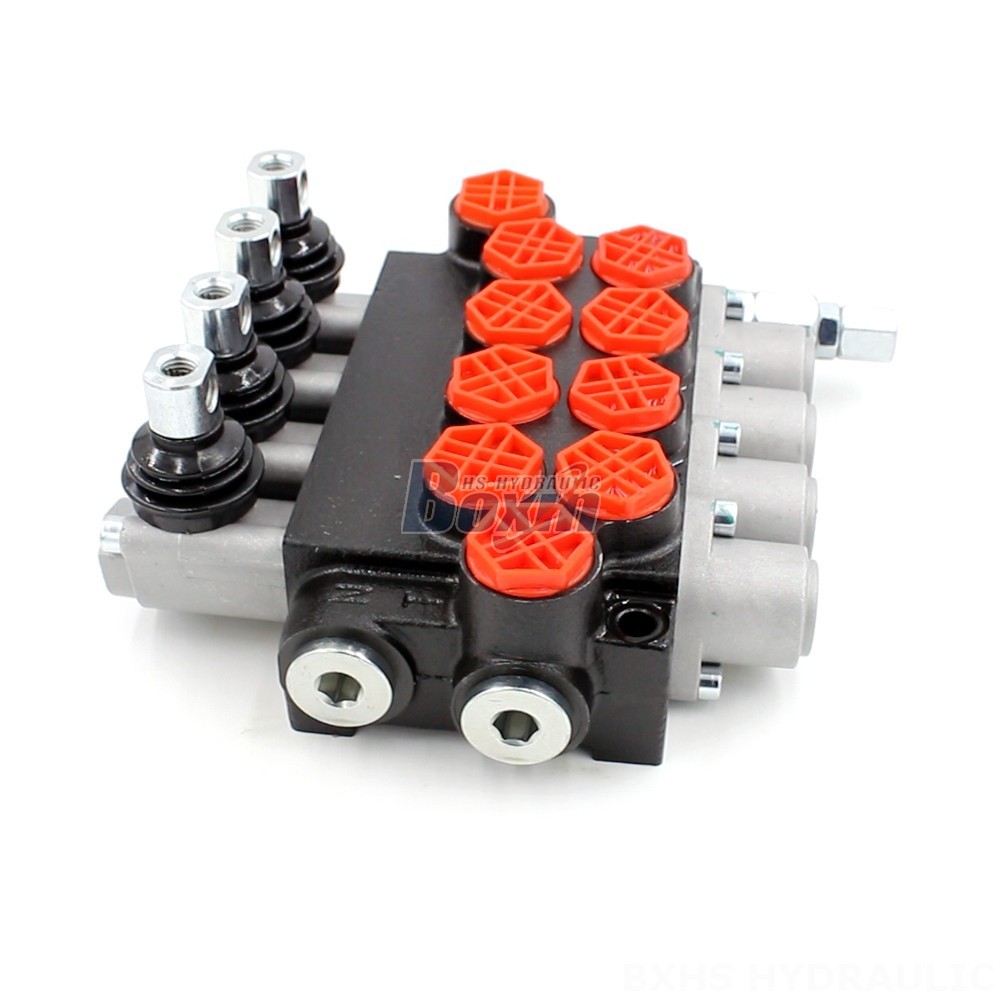

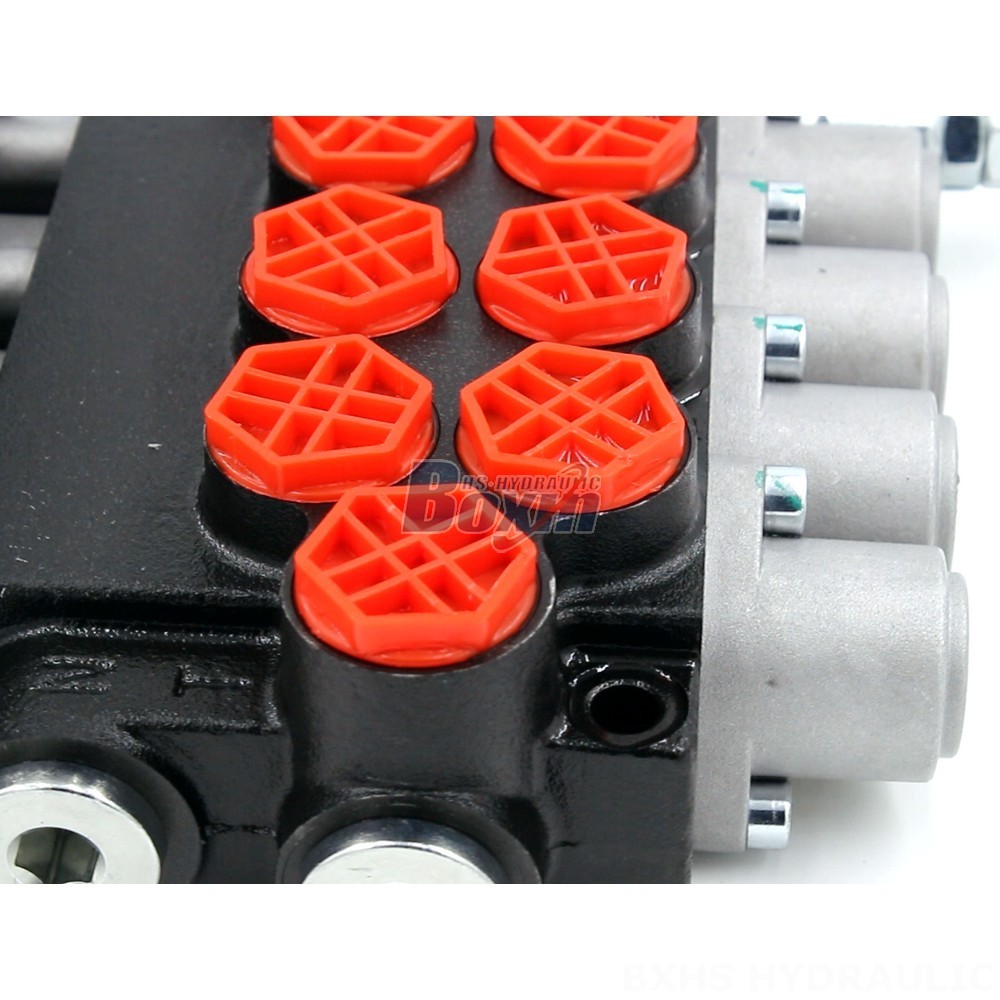

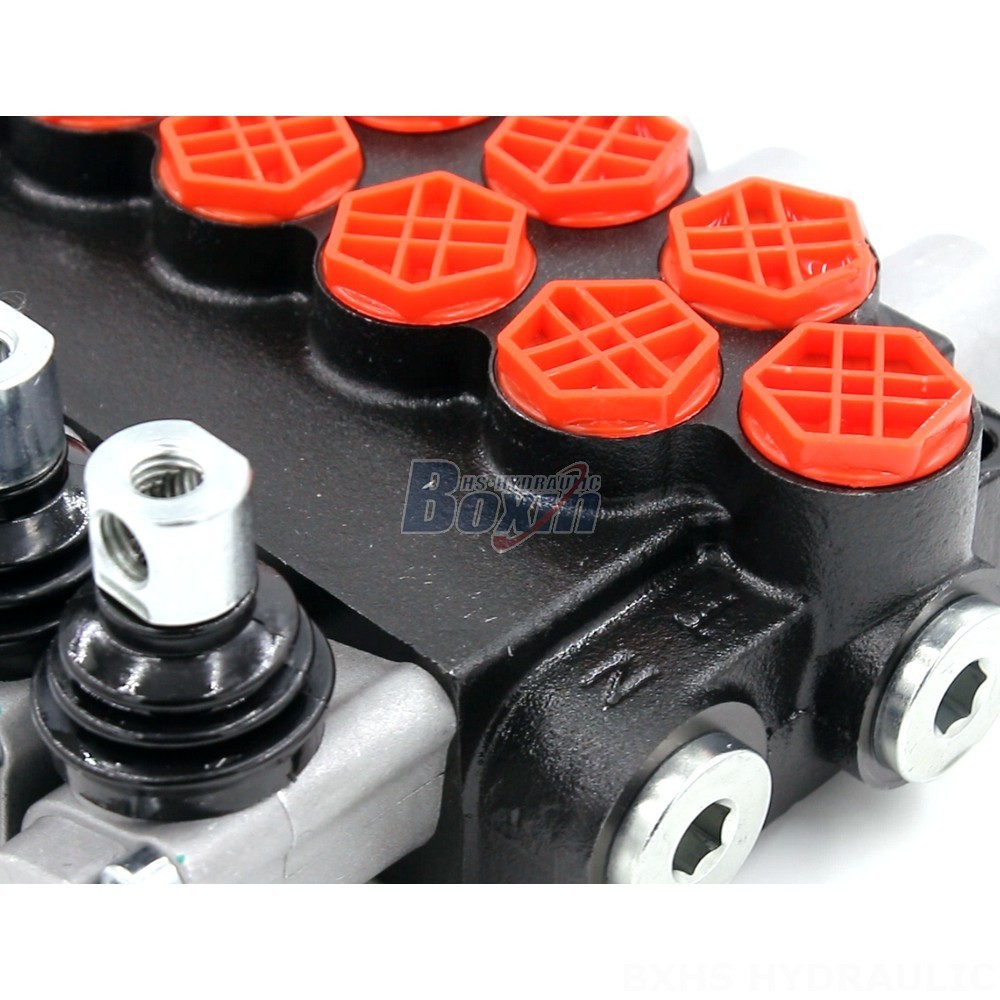

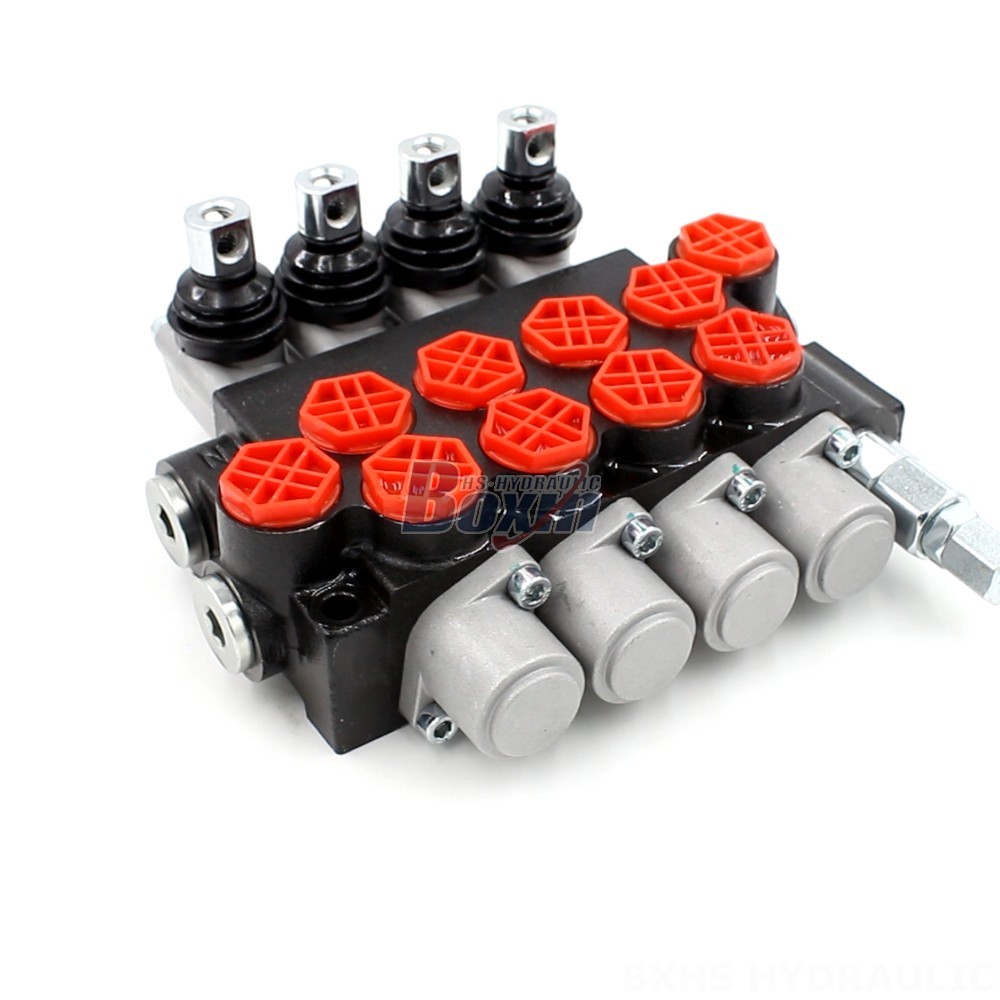

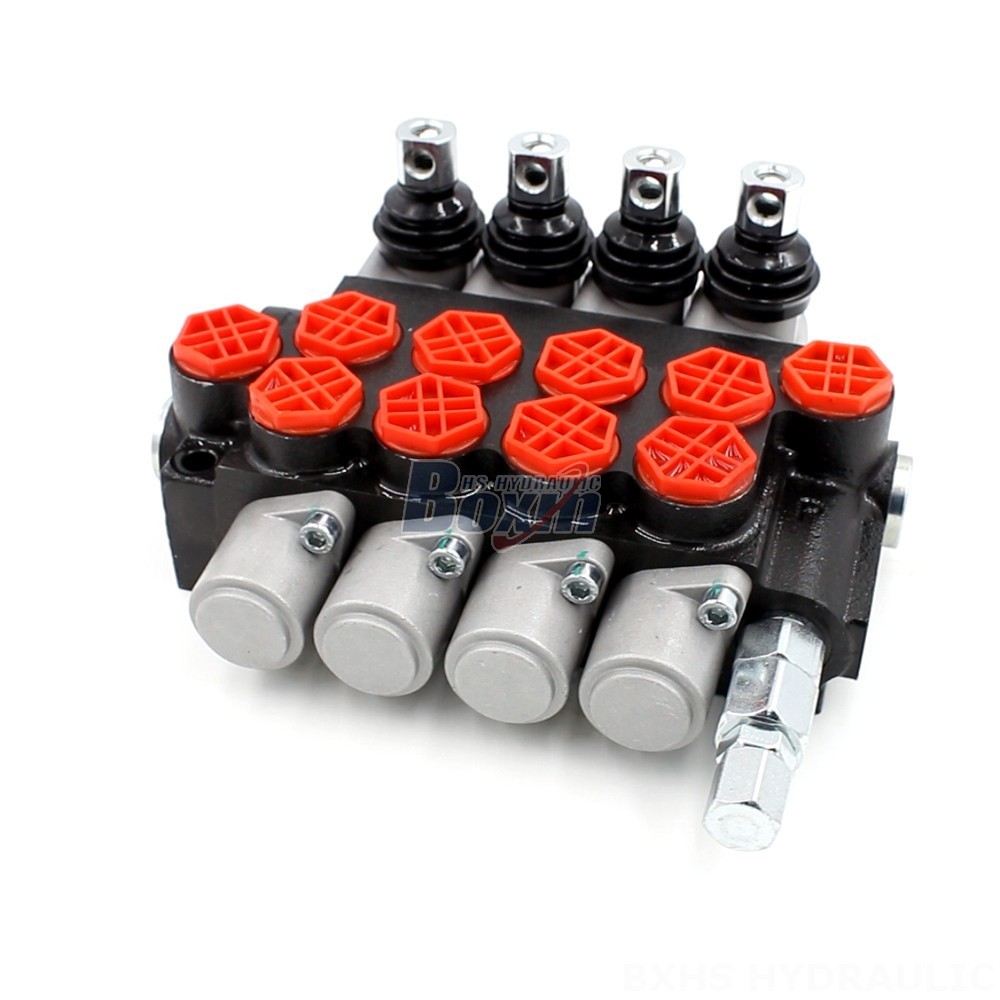

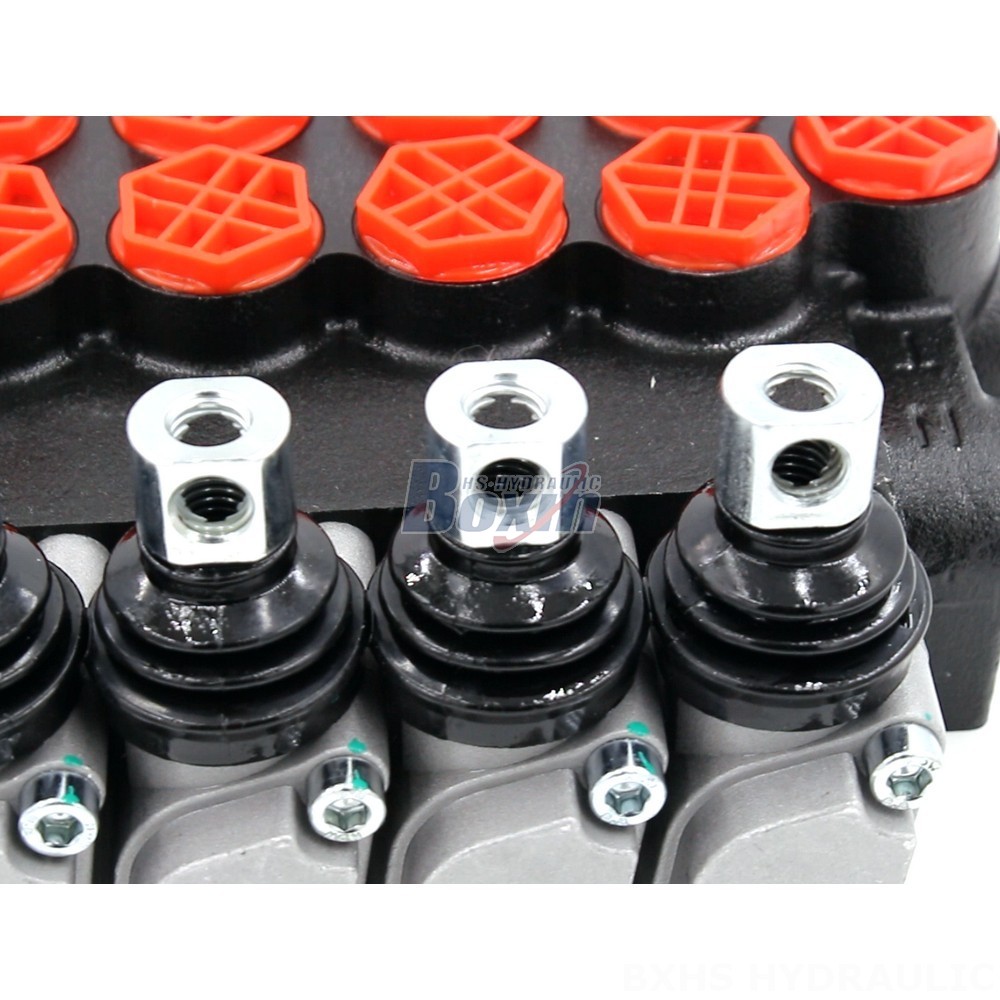

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

Серия P40 Моноблочный направляющий клапан Параметры
Метод управления Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Соленоидный и джойстиковый, Ручной и джойстиковый, Соленоидный и тросовый
Катушка 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников
Диапазон рабочих температур 15 - 75 мм²/с (15 сСт - 75 сСт)
Тип конструкции Моноблочный клапан
Размер 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций
Номинальный расход 40 л/мин (10,5 галлон США/мин)
Максимальное давление 250 бар (3600 фунт на кв. дюйм)
Входной порт G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Выходной порт G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Размер порта G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
