Производство и доставка
Срок изготовления 15-30 дней



This P40 Series 3-section monoblock hydraulic valve offers manual control with a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles.
| Серия P40 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Соленоидный и джойстиковый, Ручной и джойстиковый, Соленоидный и тросовый |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 250 бар (3600 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Выходной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Размер порта | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

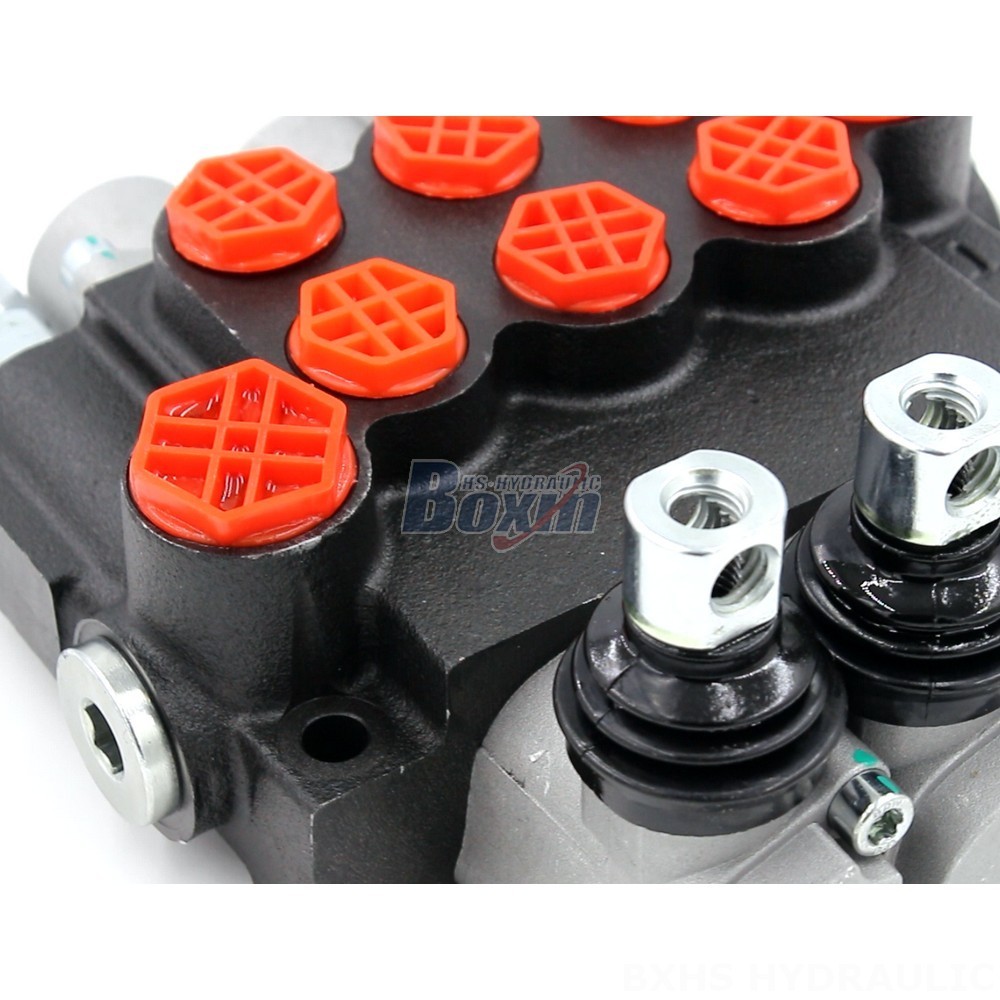

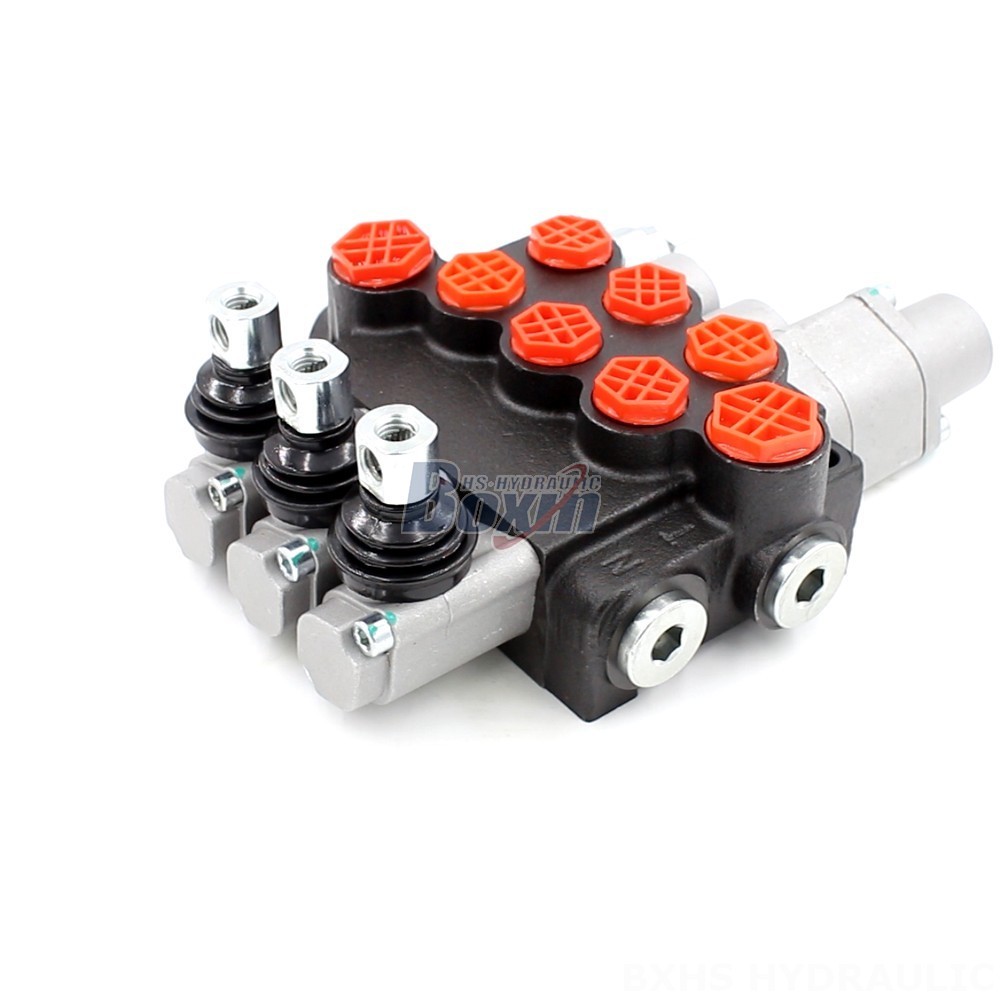

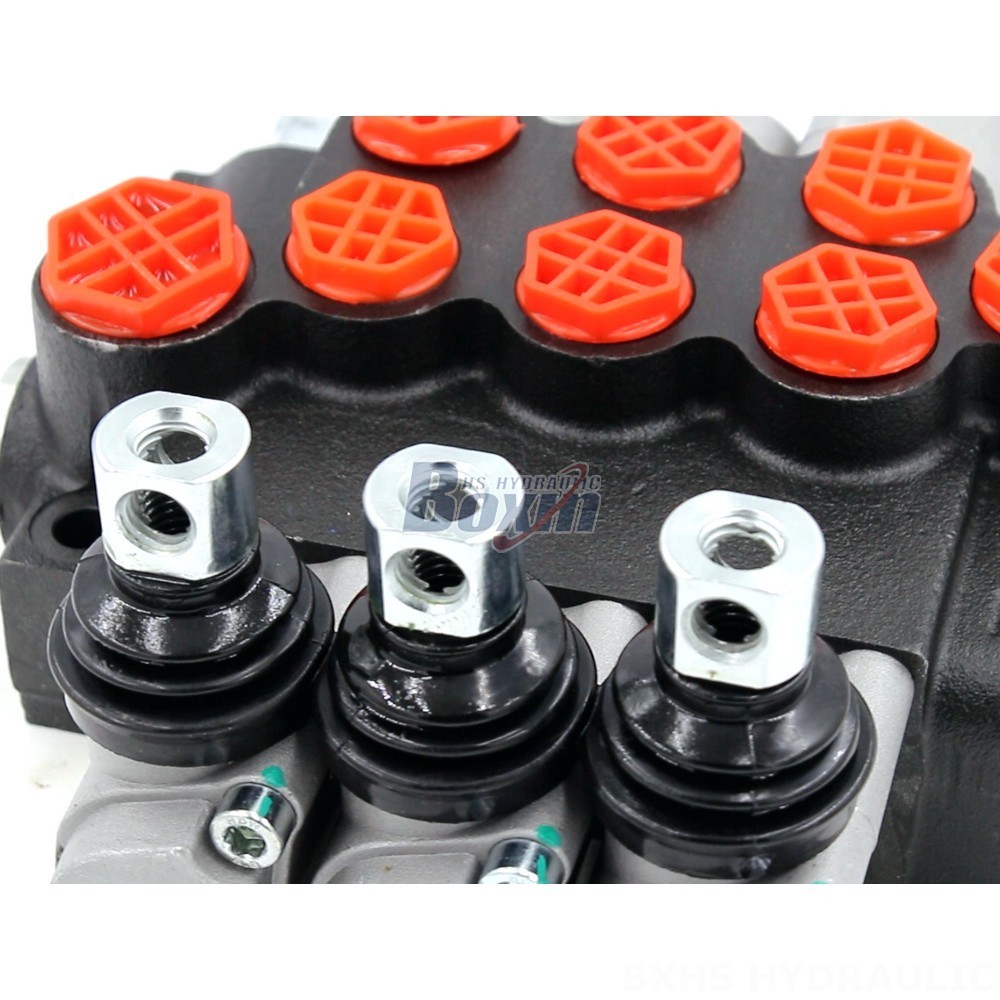

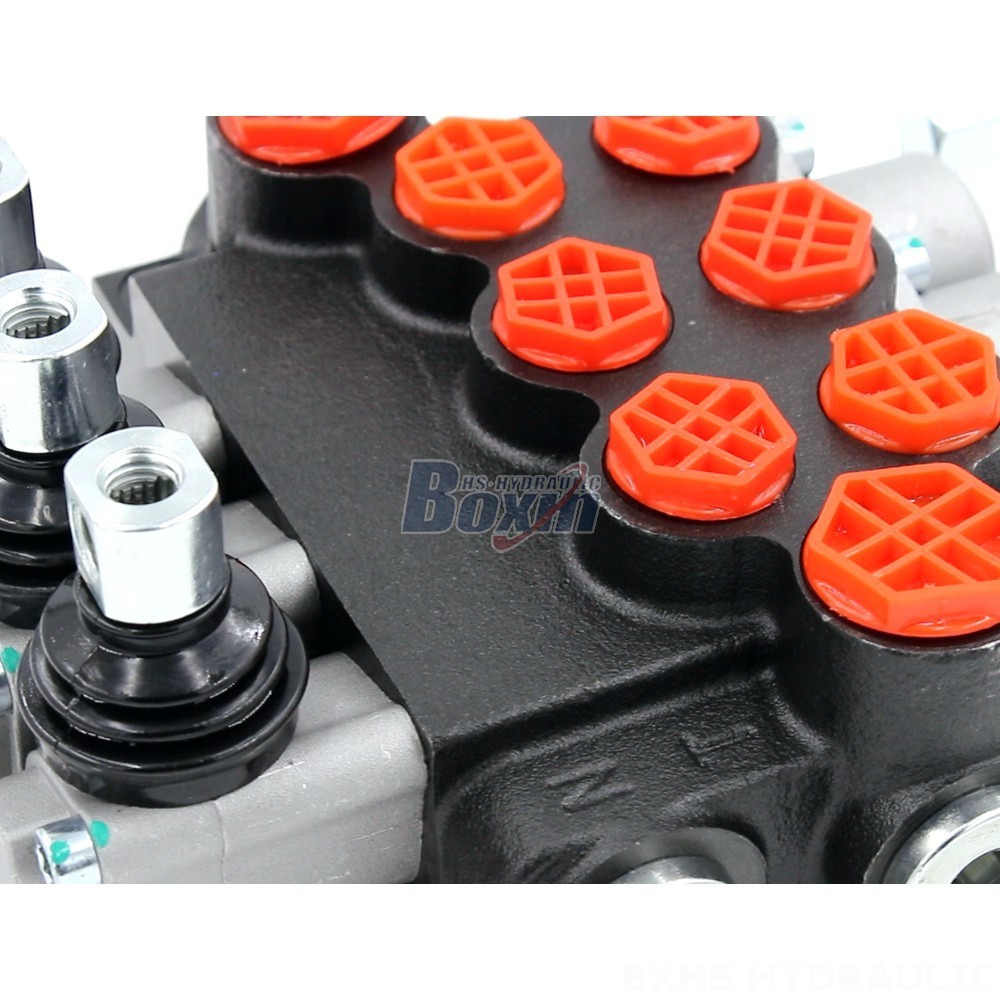

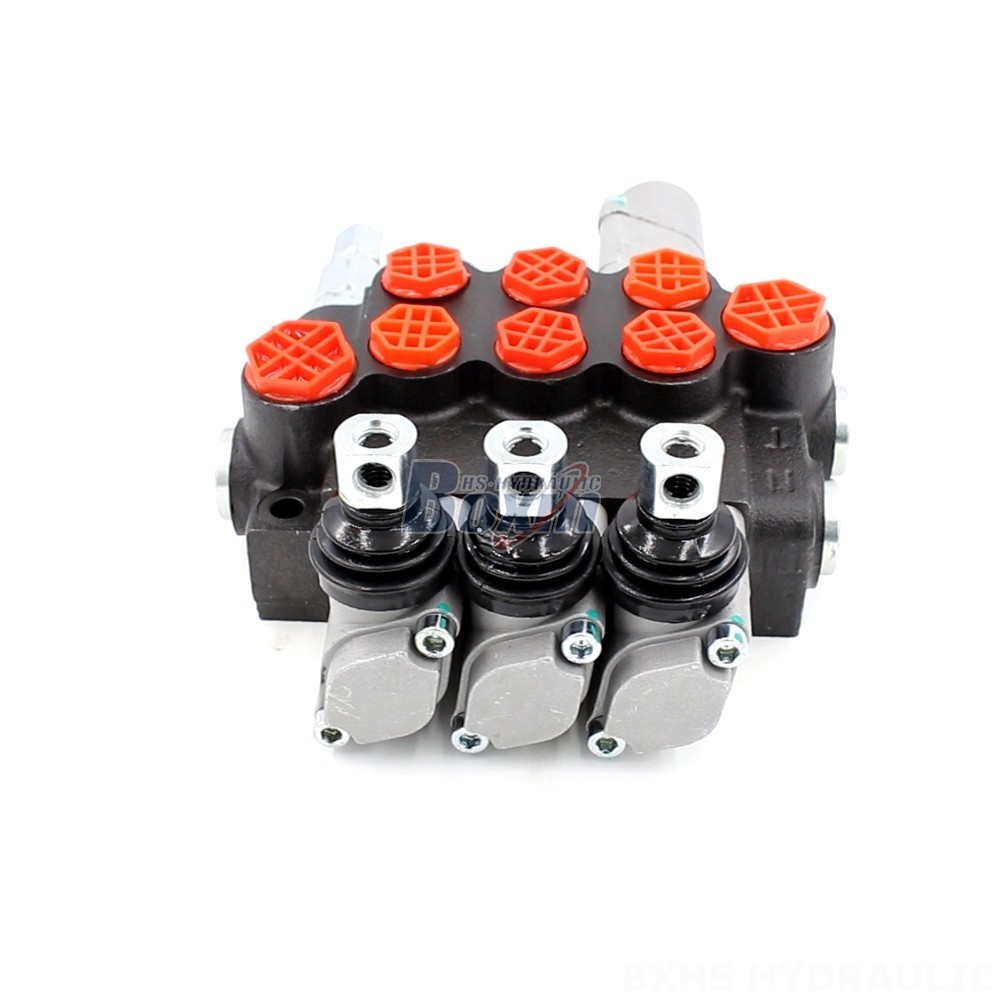

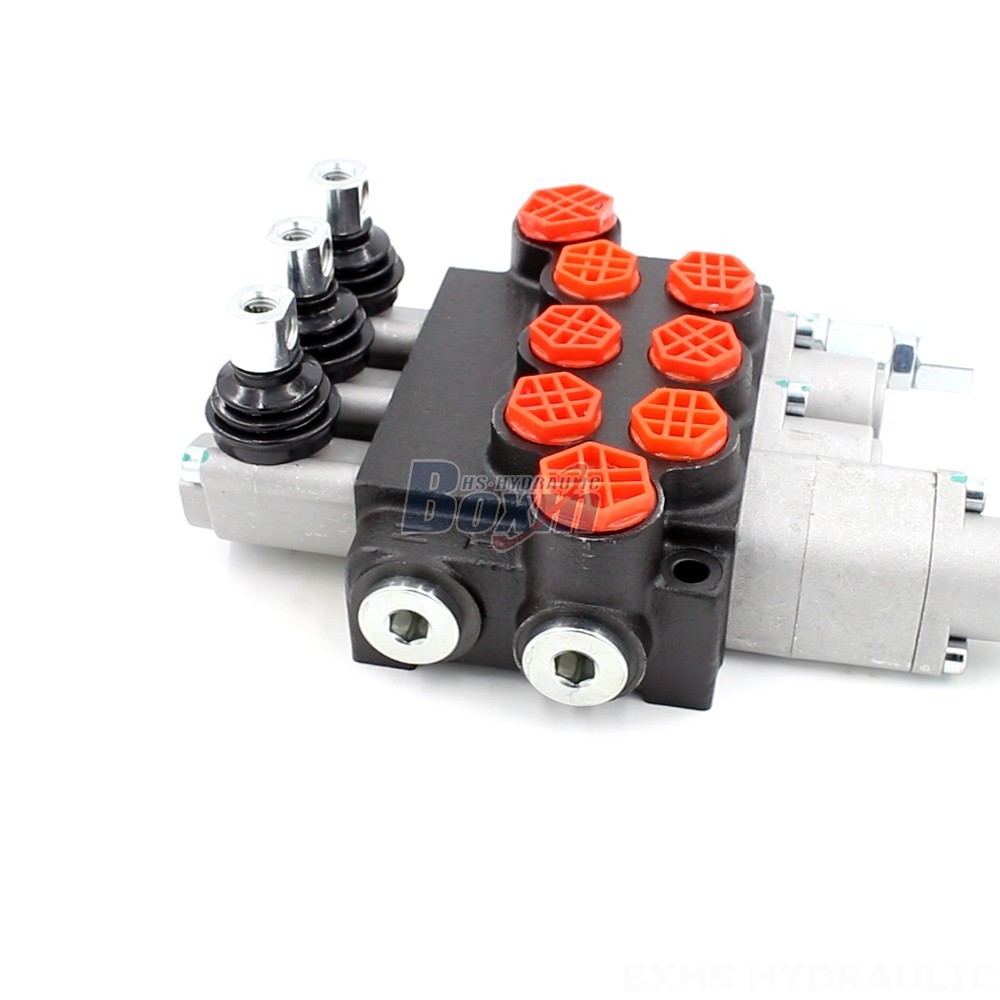

The P40-G12-G38-2OT-QTW hydraulic valve is a 3-section monoblock valve with manual control. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It includes a 3-spool configuration, making it suitable for various applications in material handling, construction, agriculture, and industrial vehicles. The valve is particularly well-suited for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, harvesters, and seeding machines.
