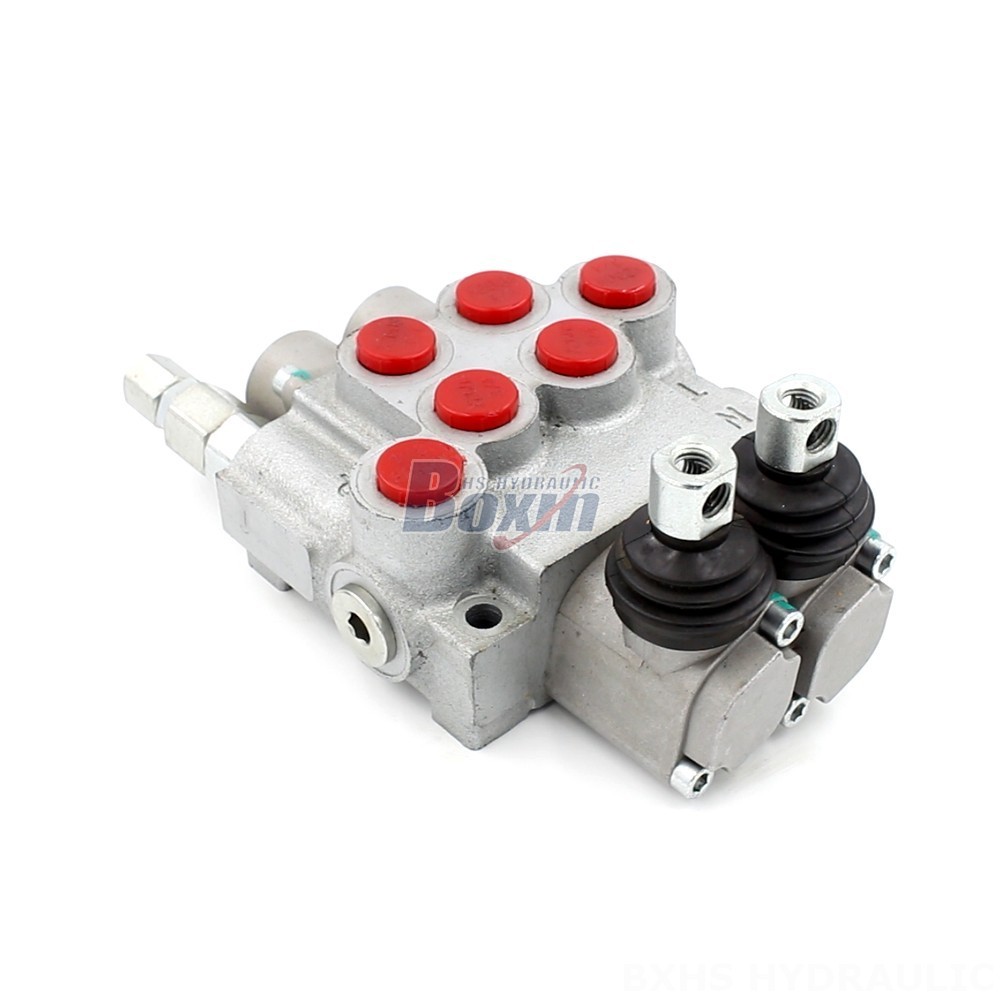

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.
| P40-DKL Series Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Ручной и джойстиковый |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 250 бар (3600 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Выходной порт | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Размер порта | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Тип конструкции | Моноблочный клапан |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
