Производство и доставка
Срок изготовления 15-30 дней

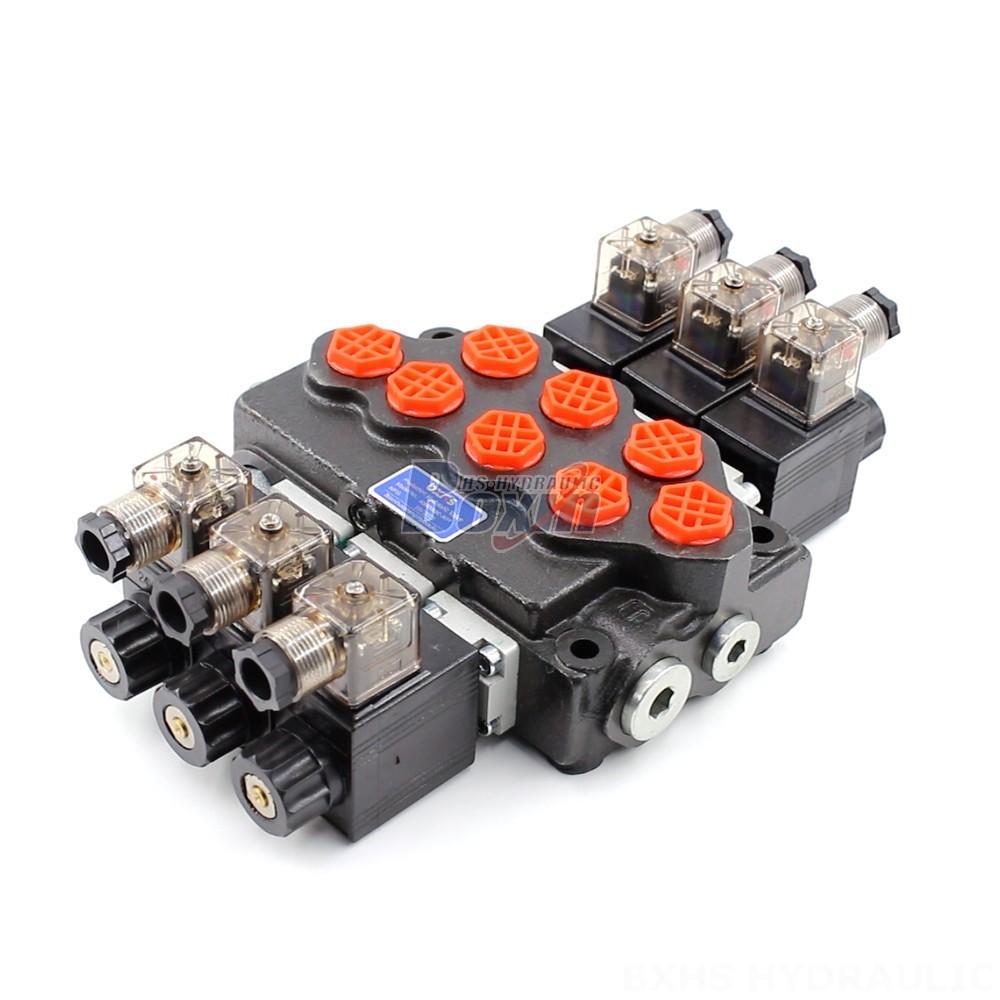

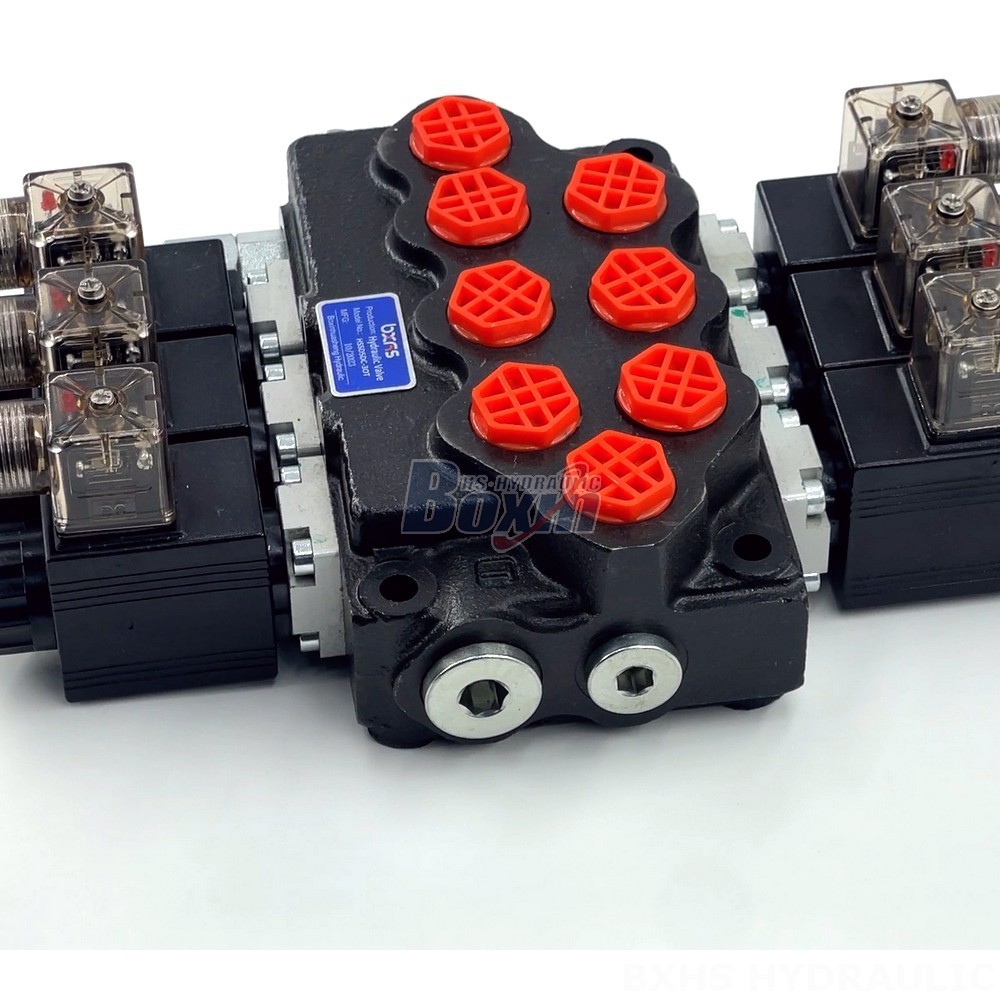

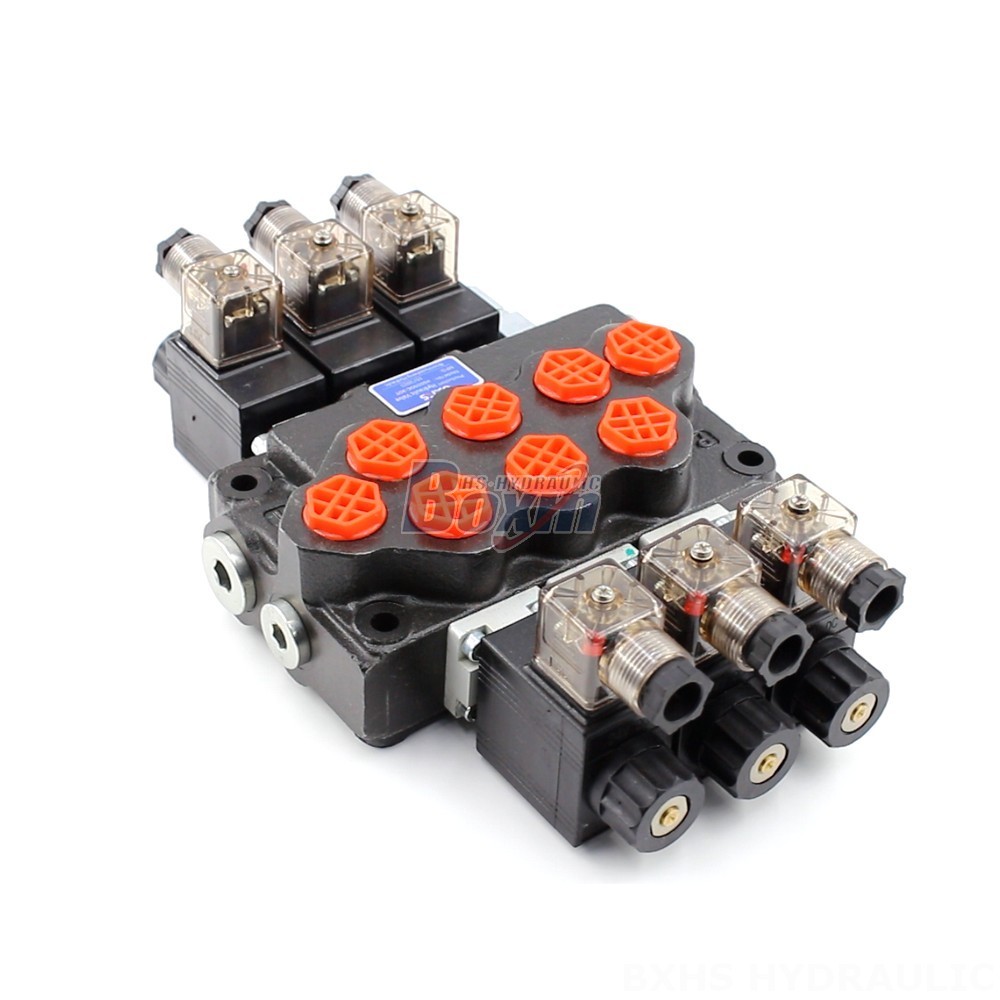

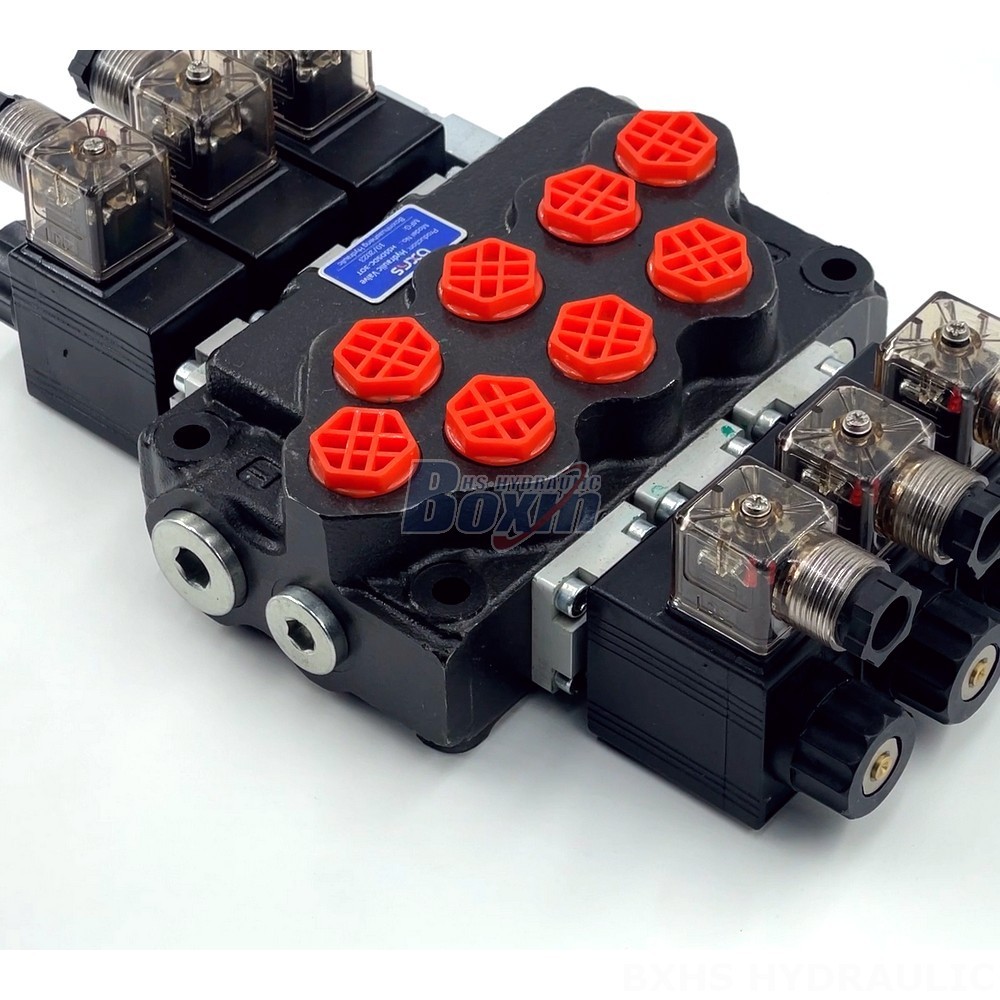

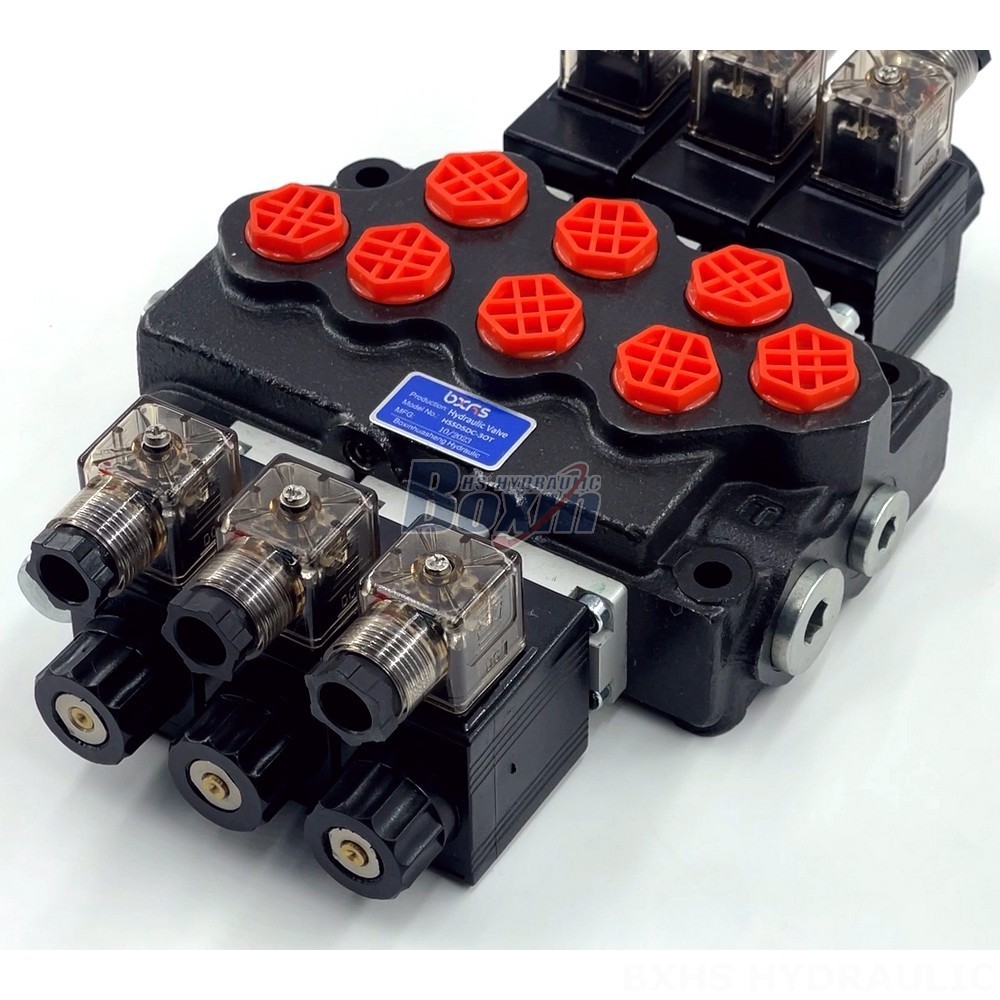

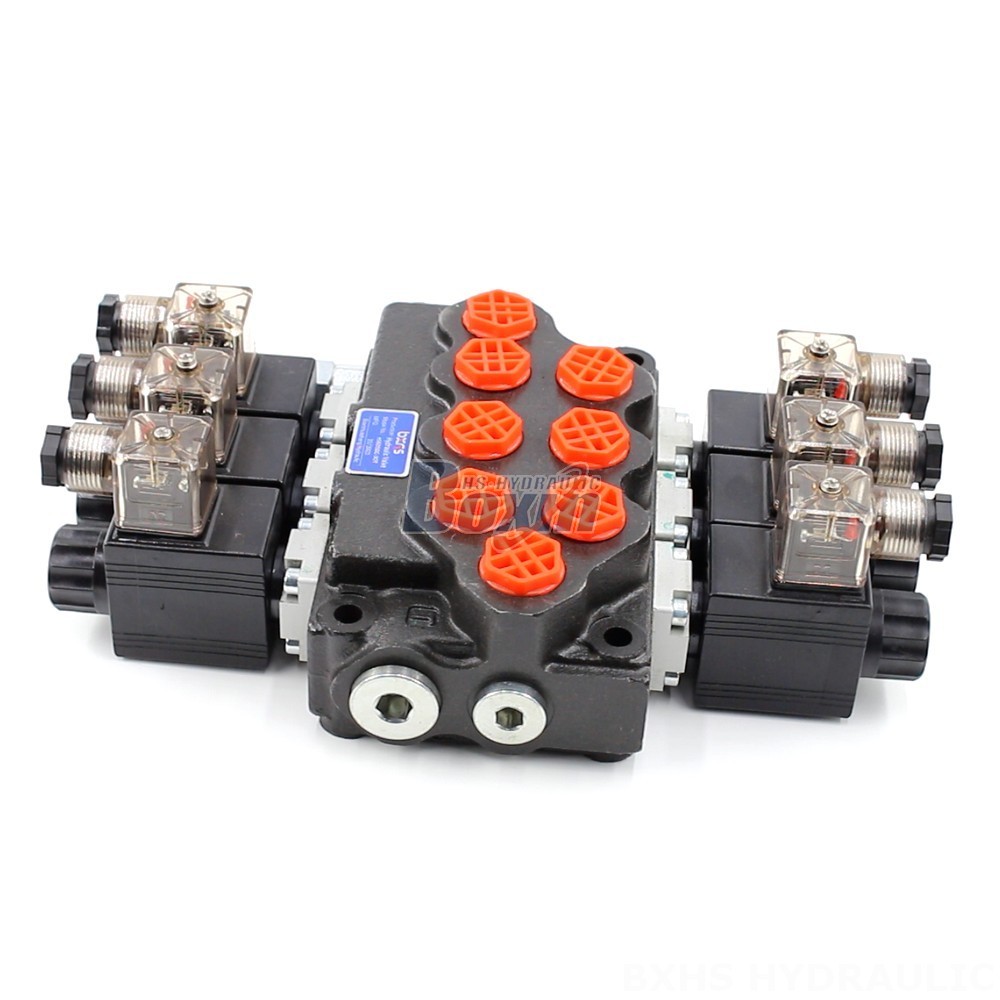

The SD5 series 2-Way Flow Divider Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 3 sections, and a rated flow of 40 L/min. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
| Серия SD5 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 305 бар (4400 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Выходной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Размер порта | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 series Hydraulic 2-Way Flow Divider Monoblock Directional Valve is a compact and robust valve designed for demanding applications. It features a solenoid control method for precise and reliable operation. The 3-section design allows for multiple functions to be controlled with a single valve. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is capable of handling high flow rates and pressures. The SD5 series valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It is commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
