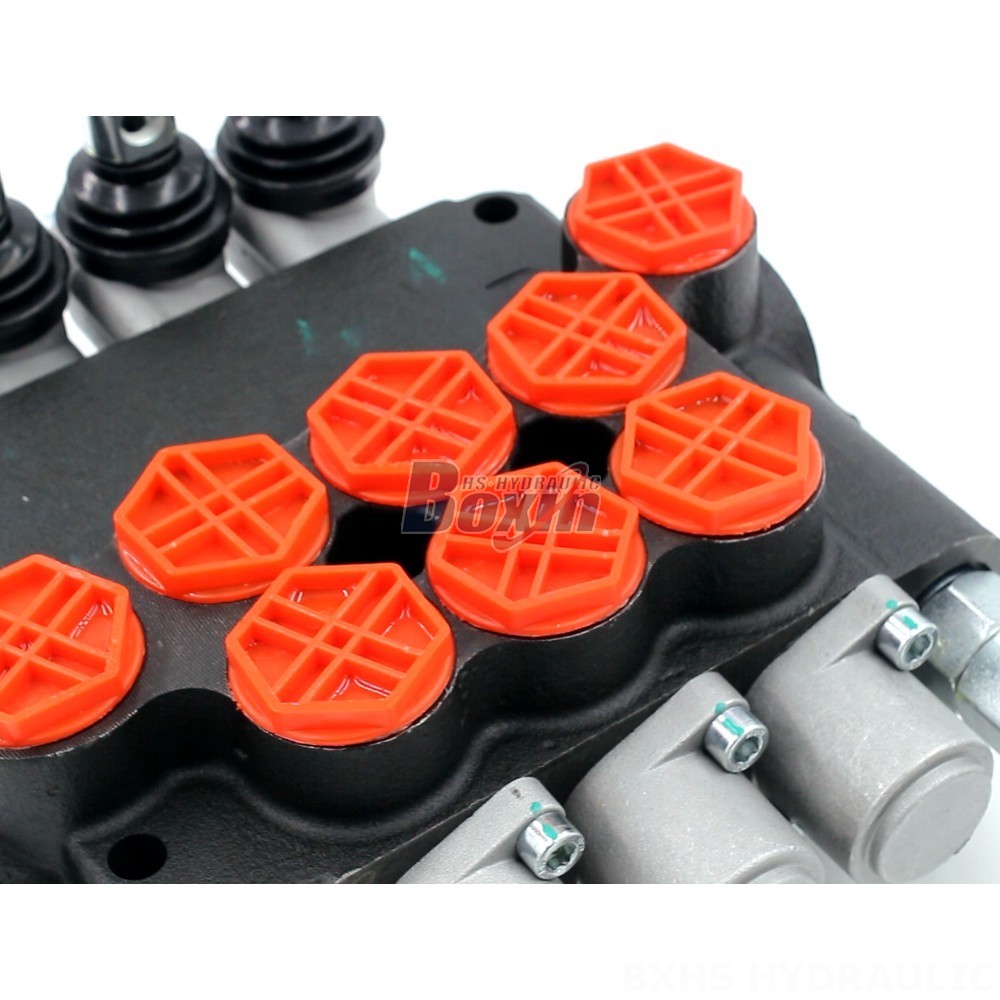

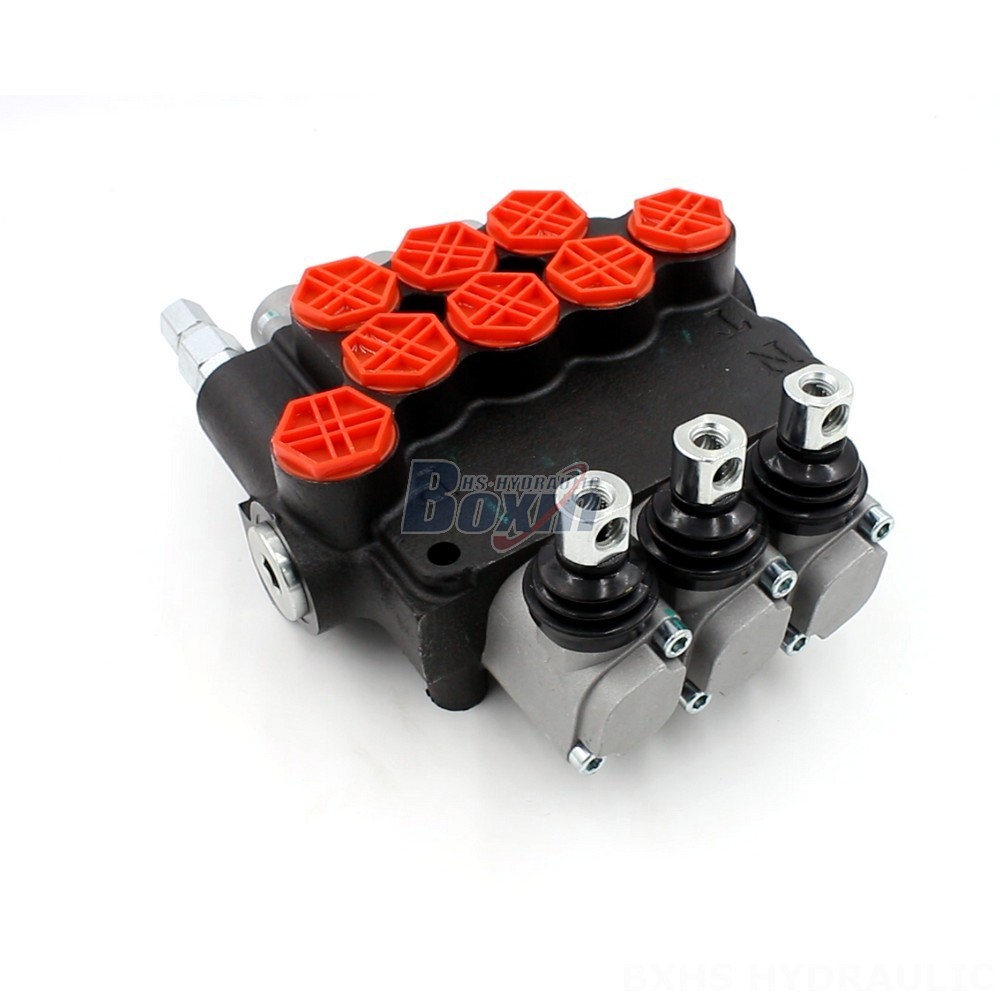

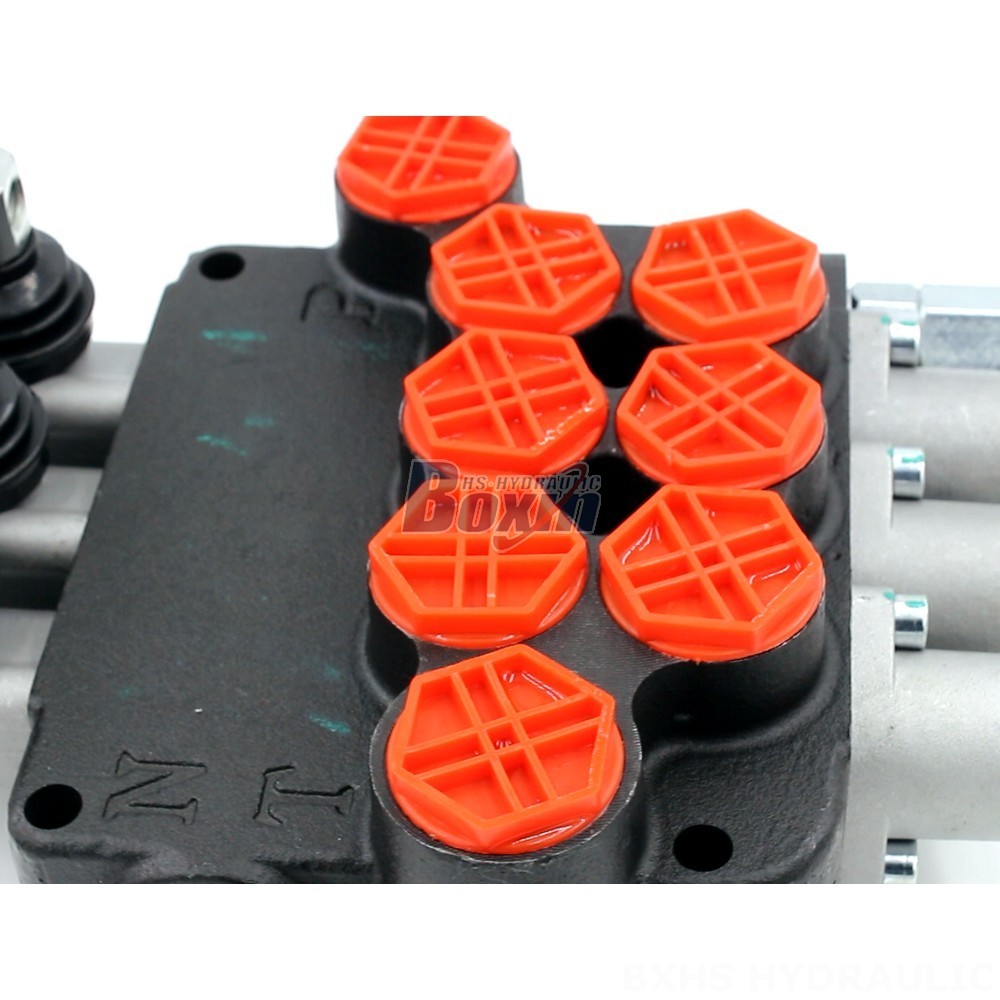

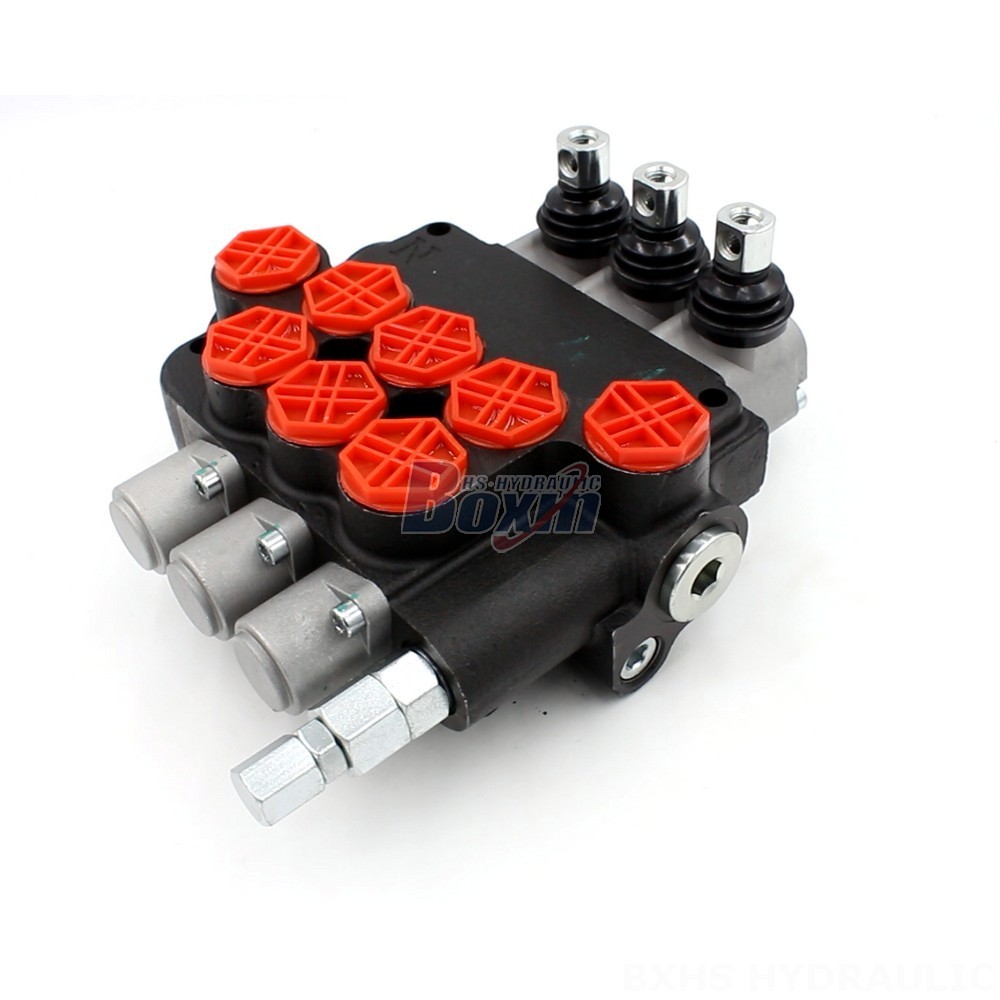

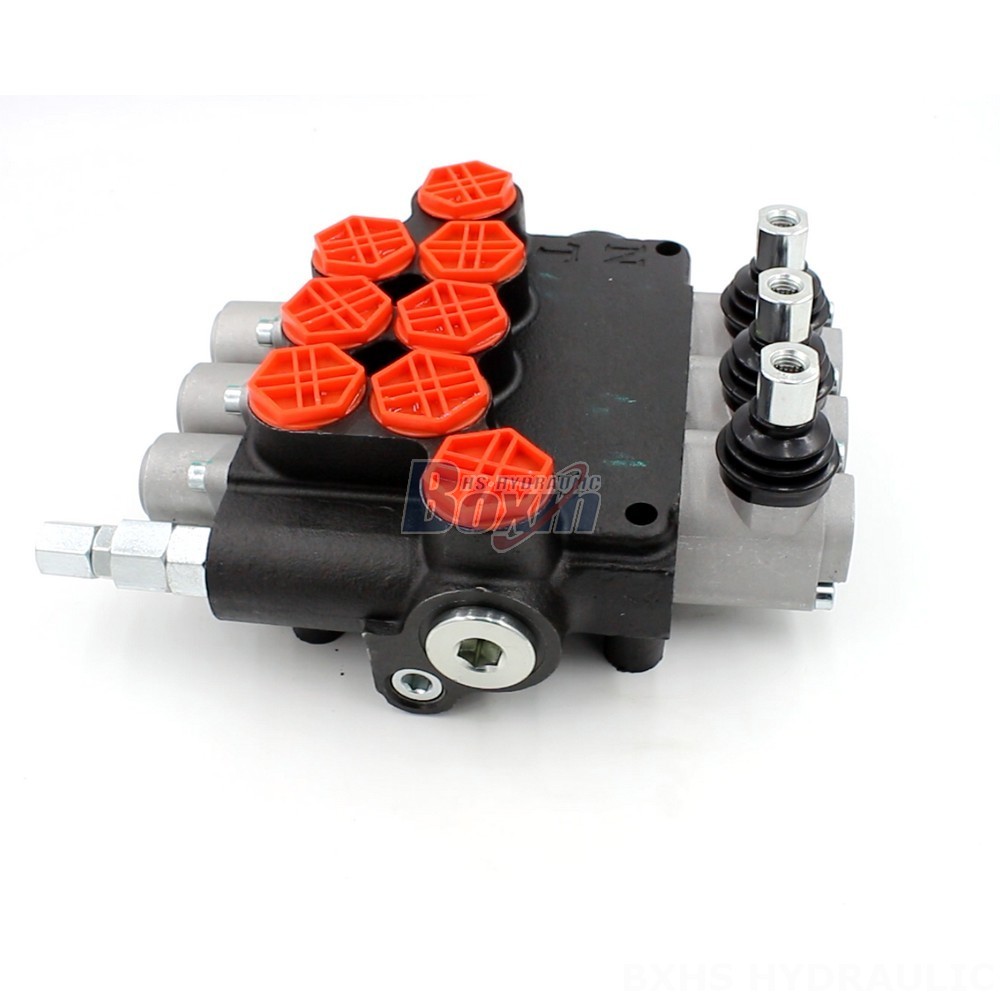

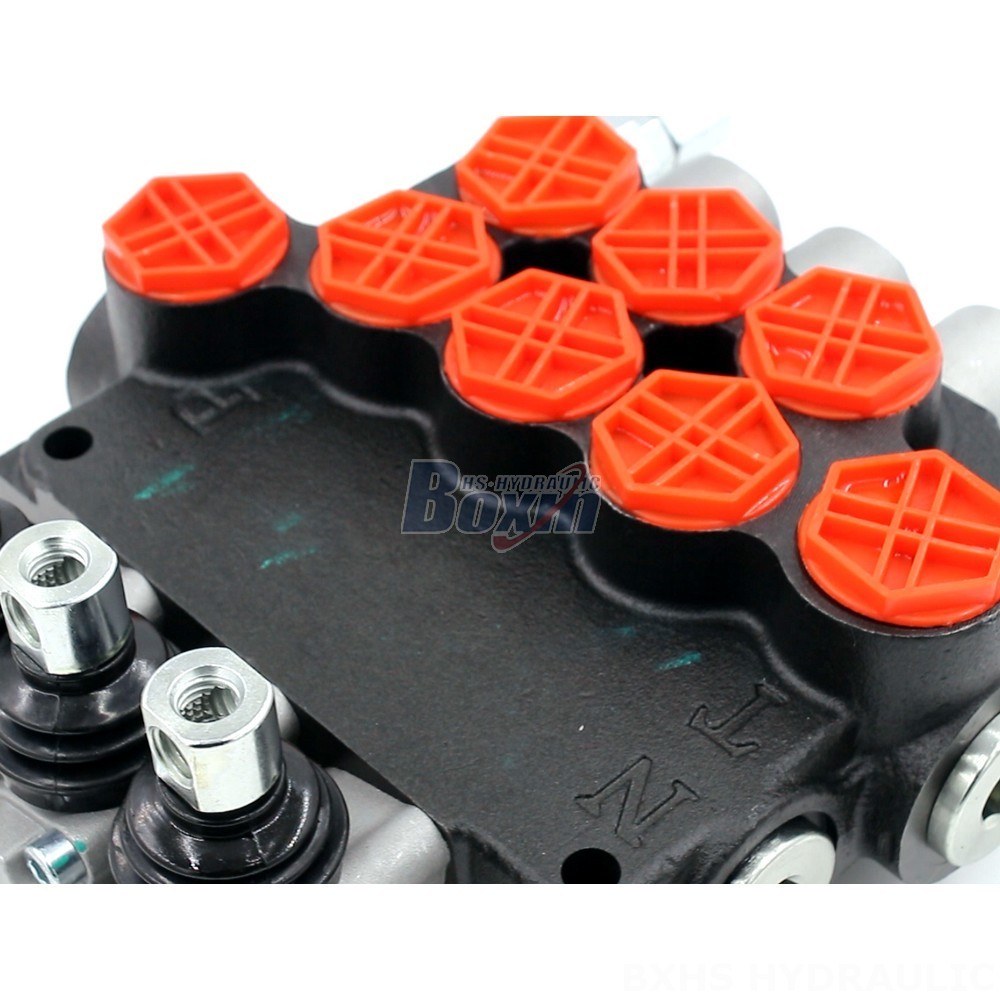

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.
| Серия P80 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик, Ручной и джойстиковый |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 80 л/мин (21,2 галлон США/мин) |
| Максимальное давление | 315 бар (4600 фунт на кв. дюйм) |
| Входной порт | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Выходной порт | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Размер порта | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
