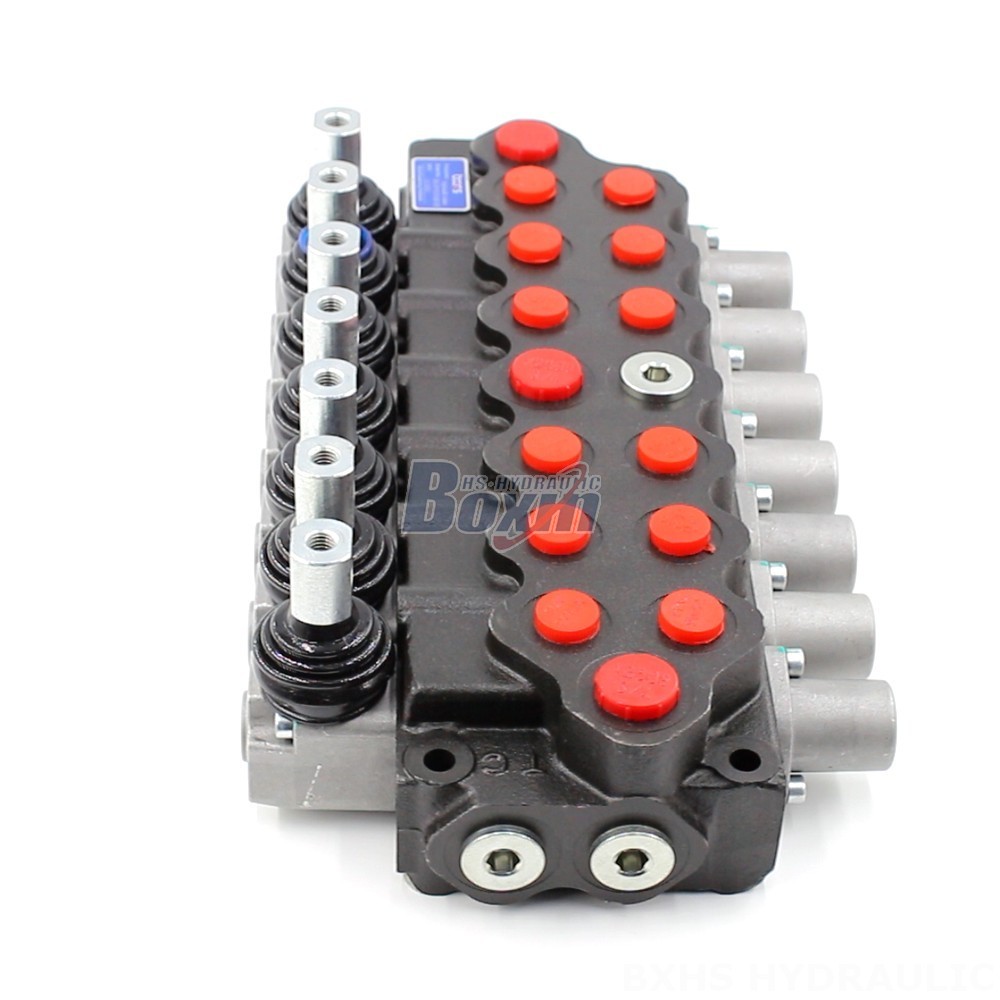

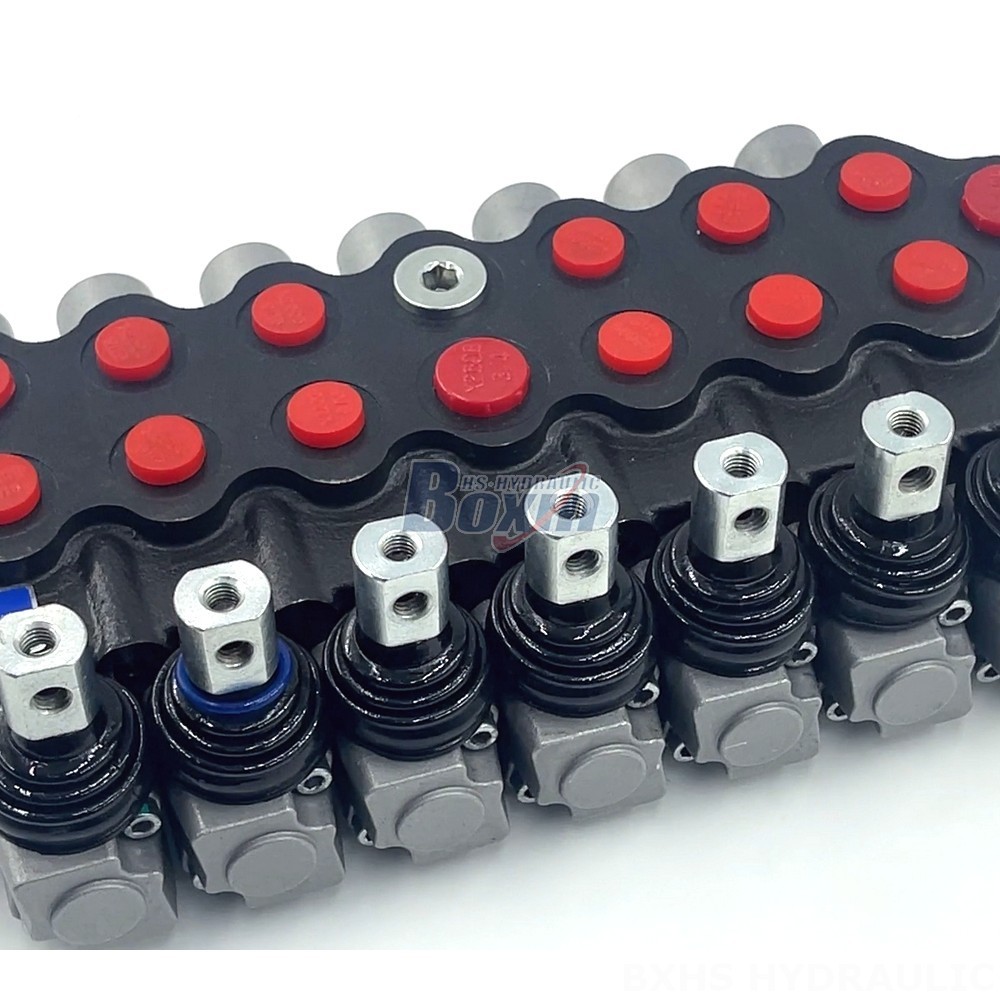

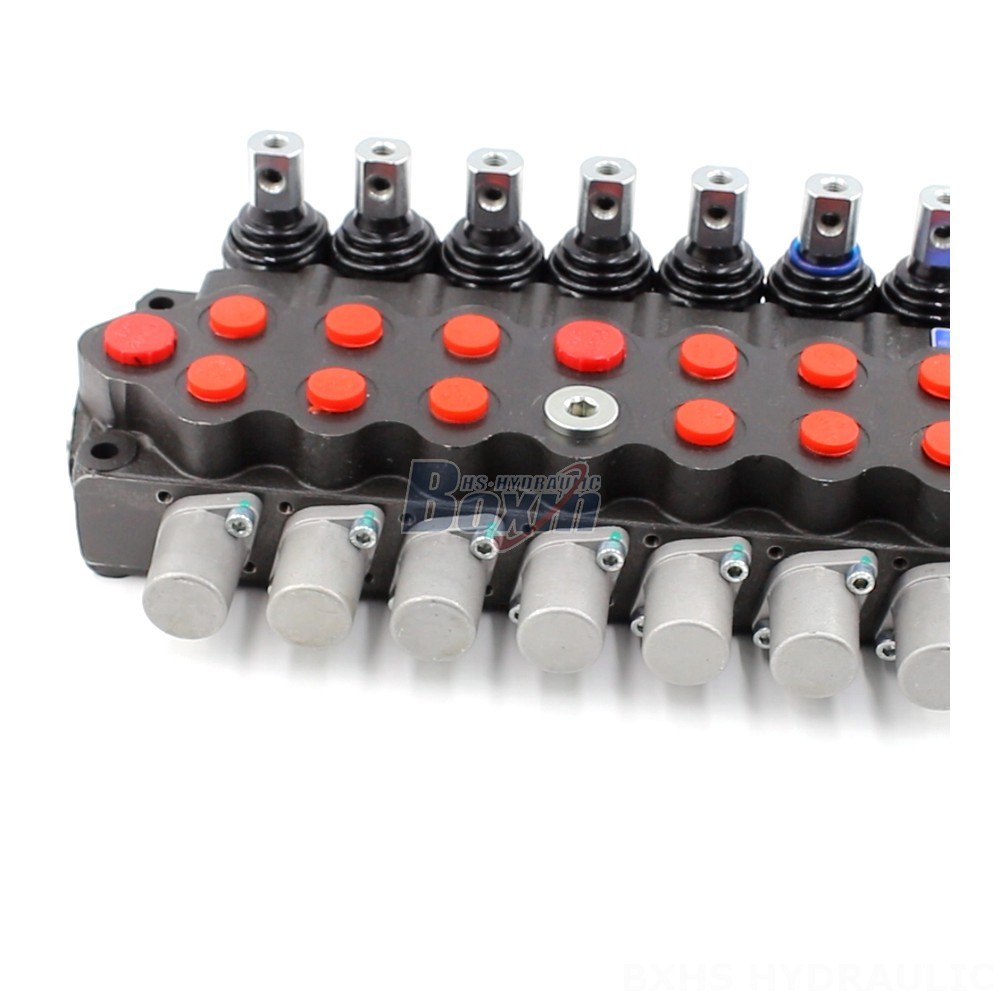

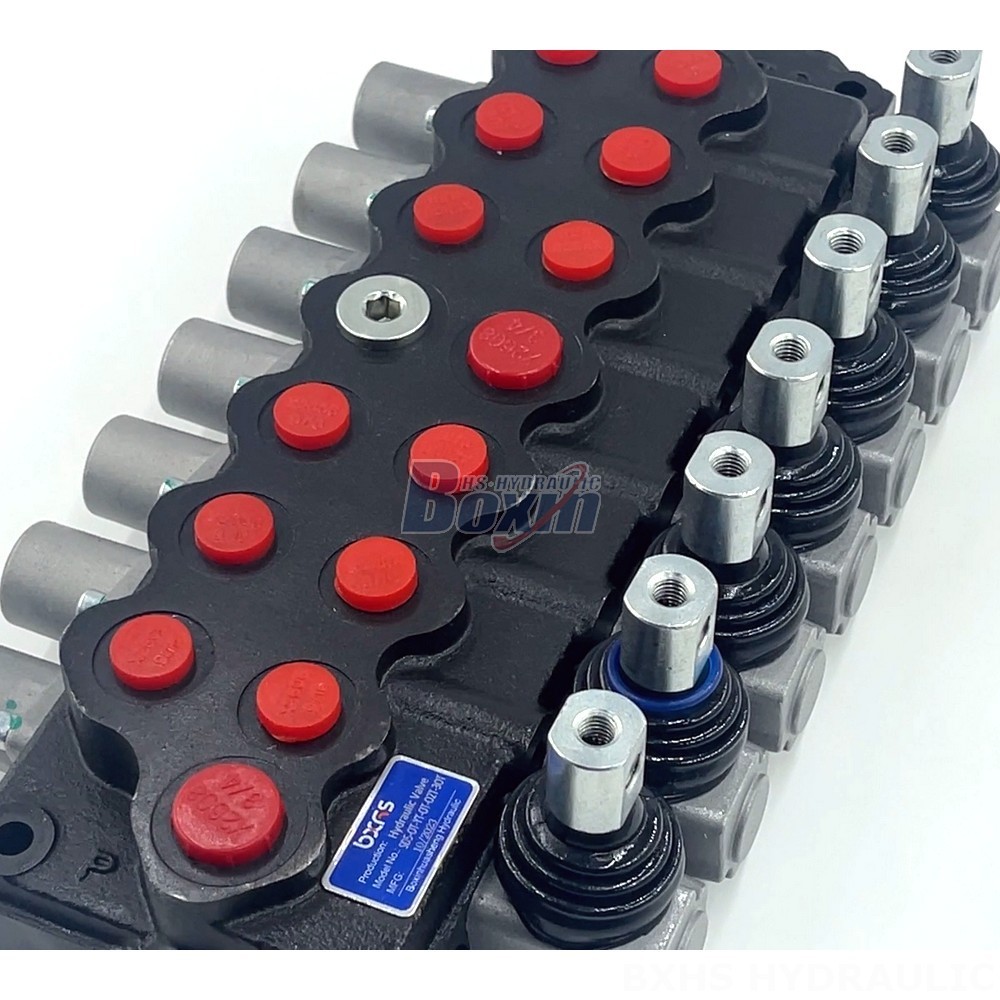

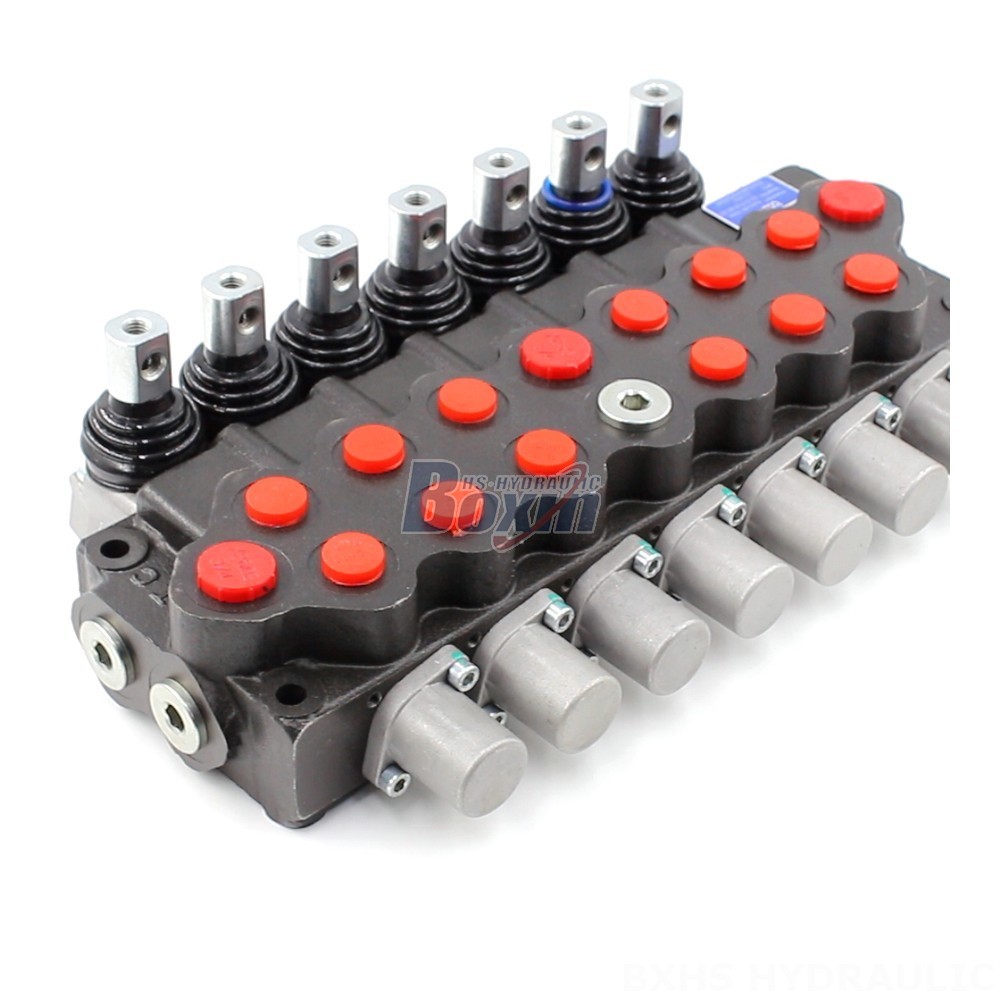

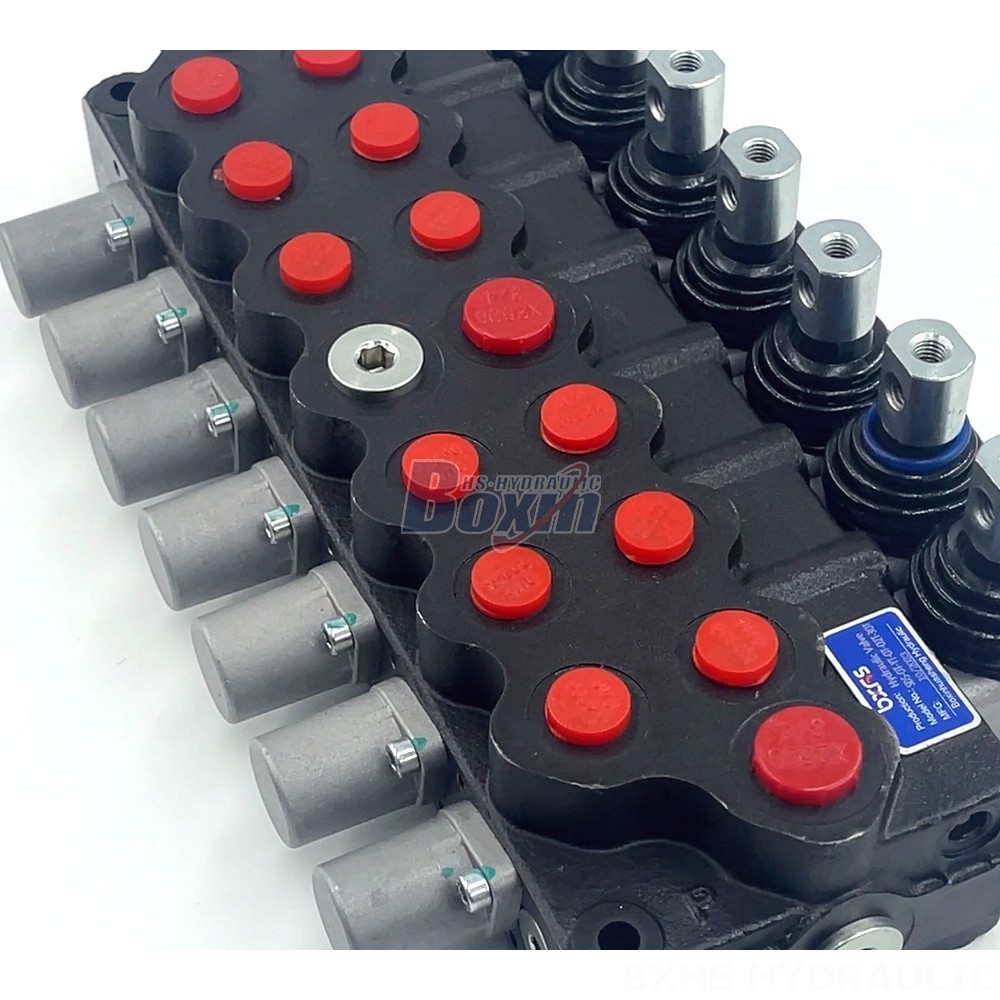

The SD5 Series 7-Spool Hydraulic Multiplier Valve is a high-performance, monoblock valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. With its 7 spools and rated flow of 40 L/min, it provides precise control and efficient operation.
| Серия SD5 Моноблочный направляющий клапан Параметры | |
|---|---|
| Метод управления | Ручное, Пневматический, Электропневматический, Электрогидравлический, Соленоидный, Гидравлический, Гидравлический и ручной, Канат, Джойстик |
| Катушка | 1 золотник, 2 золотника, 3 золотника, 4 золотника, 5 золотников, 6 золотников, 7 золотников |
| Диапазон рабочих температур | 15 - 75 мм²/с (15 сСт - 75 сСт) |
| Тип конструкции | Моноблочный клапан |
| Размер | 1 секция, 2 секции, 3 секции, 4 секции, 5 секций, 6 секций, 7 секций |
| Номинальный расход | 40 л/мин (10,5 галлон США/мин) |
| Максимальное давление | 305 бар (4400 фунт на кв. дюйм) |
| Входной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Выходной порт | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Размер порта | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 7-Spool Hydraulic Multiplier Valve is built with a robust monoblock construction, providing exceptional durability and reliability. It features a rated flow of 40 L/min, a maximum pressure rating of 305 bar (4400 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for demanding environments, it operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F). With its manual control and 7 spools, this valve offers precise control for a variety of hydraulic functions. This Hydraulic Multiplier Valve is ideal for applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
